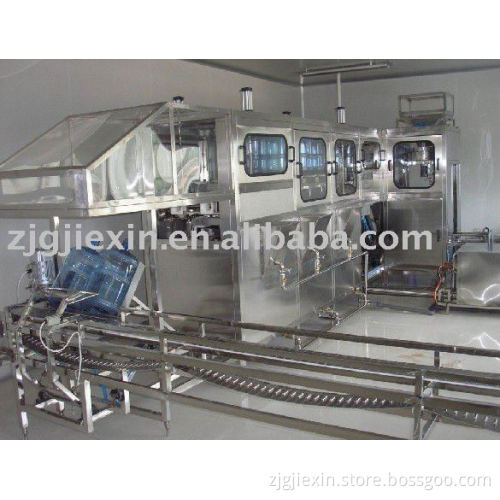

5 Gallon mineral Water Filling Machine

Specifications 5 Gallon mineral Water Filling Machine

1.filling mineral water in 5 gallon barrel.

2.automatic washing,filling,capping

5 Gallon mineral Water Filling Machine Feature:        This  5 Gallon mineral Water Filling Machine  specially produces 5 gallons bottled dinking water,mineral water, whose types (b/h) are: 100 type, 200 type, 300 type, 450 type, 600 type, 900 type, 1200 type and 2000 type.   1. It integrates bottle washer, filler and sealer into unit, Multiple injections of washing and sterilizing and bleaching are used in bottle.
2. The sealer can seal bottle caps qutomatically.
3.  5 Gallon mineral Water Filling Machine equips with water spraying device to sterilize caps of bottles in order to ensure those caps are aseptic and healthy.     5 Gallon mineral Water Filling Machine Technical parameters

Main Technical parameters
Model	QGF-100	QGF-300	QGF-450	QGF-600	QGF-900	QGF-1200	QGF-2000
Filling heads	1	2	3	4	8	12	16
volume(L)	18.9	18.9	18.9	18.9	18.9	18.9	18.9
Barrel size(mm)	φ 270× 490	φ 270× 490	φ 270× 490	φ 270× 490	φ 270× 490	φ 270× 490	φ 270× 490
Capacity(b/n)	100-120	200-240	300-400	600	900	1200	2000
Gas pressure(mpa)	0.4-0.6	0.4-0.6	0.6	0.6	0.6	0.6	0.6
Gas consumption(m 3 /min)	0.37	0.6	0.6	1.2	2.2	3	4.5
Motor power(kw)	1.75	3.22	4.8	8.5	8.5	8.5	8.5
Rated voltage(V)	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz
Outline dimension(mm)	3790× 650 × 1550	3550× 800 × 1800 2800× 1100 × 1800	3550× 1200 × 1800 3800× 1100 × 1800	3650× 1500 × 1800 3800× 1100 × 1800	2200× 1860 × 2700	2560× 2350 × 2750	3100× 2800 × 2750
Weight(kg)	800	2800	4000	5500	7500	9500	11800
