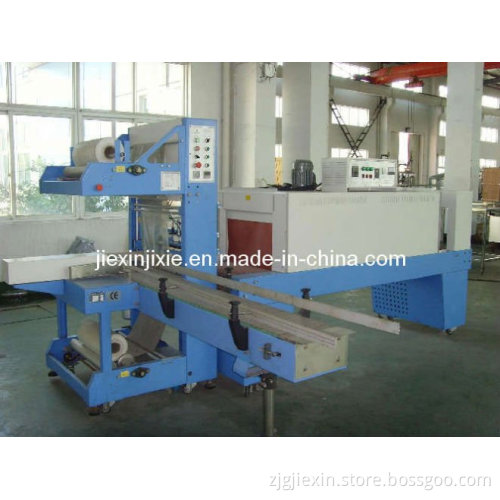

PE Film Shrink packing Machine

Specifications PE Film Shrinking and packing Machine

1. heat shrink packaging machine

2. for PET bottle or glass bottle

   PE Film Shrink packing Machine Features:
1.It is a fully automatic production line integrated with such processes as automatic conveying, feeding, sealing, cutting and shrinking. For large collectively counted case(box or can) packaging, 2.it is preferred to encase with PE or PVC shrink film before shrink package. 3.We can also design straight line or 90 rotational drive as required by customers production lines. 4.The electrical units are chosen from international famous companies such as: SICK, NORGEN, MISUBISHI and so on. 5.The packed goods is neatness, suitable for long transport.   PE Film Shrink packing Machine Usage:  the machine is used for packing bottled water, drink, or canned drink into a pack with PE film. Don’t need backing board or paper plate when packing; it will save the cost of packing. It is widely used in production of mineral water, pure water, soft drink, beer, juice and so on.

Model	STZ-6030	SMZ-6040
Horizontal height and length of inlet conveyor	850± 50mm/1500mm	850± 50mm
Max packing dimension(mm)	600*300*320(L*W*H)	no limit*300*320(L*W*H)
Packing speed	10-18pcs/minute	0-12m/minute
Rated power	1Φ /220V    2kw	3Φ /380V    18kw
Shrink time/temperature	0.5-1.5S/0-250	0-6S/0-250
Width of the film /thick(mm)	max *600mm/0.04-0.12mm	max* 600mm/0.04-0.12mm
Overall dimension	1500*2700*2000(L*W*H)	3000*970*1400(L*W*H)
Net weight(kg)	675	550
