Can Filling Machine

Specifications Can Filling machine

1.It is used for washing, filling, sealing drink in cans

2.output:2000-6000can/h

3.PLC control

  Can Filling Machine 1. This  can filling machine is quite easy to be operated and maintained with the adopting of PLC control of frequency conversion timing.   2. All the parts contact with  beverage are made up of high quality stainless steel.   3. The sealing parts are all imported from foreign countries, which meets the requirement of the hygiene of the foodsafety.   4. Adopting the way of filling by holding the necks of the cans, plus the function of pre-cover of the centralizing cover with high precise centralization, which ensure the right seating of mouth of the can and filling valve, with low liquid loss.   5. Adopting crowning the caps with magnetic force, which passes the torque with powerful and constant magnet, and the torque can be adjusted to meet the need of many kind of plastic caps.   6. Its easy to be maintained and used with the adopting of concentrating or automatic lubrication system and the structure of full-open protection.   7.  Can filling machine is a pop canned  carbonated beverage in the digestion and absorption of advanced foreign and domestic sealing machine on the basis of independent development Of the can filling, sealing unit.

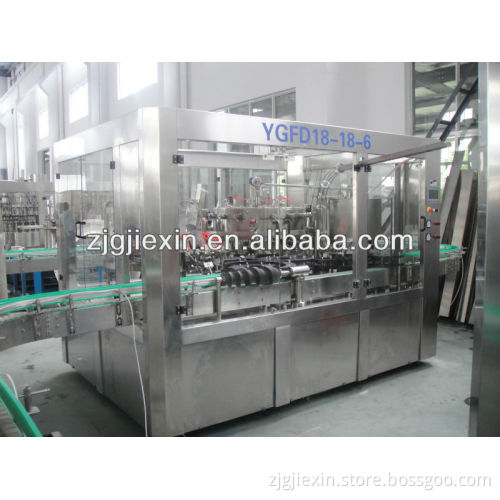

Model	YGFD12-12-1	YGFD18-18-6
Number of filling heads	12	18
Number of sealing heads	1	4
Number of washing heads	12	18
Production capacity can/h(350ml)	2000-3000	4000-5000
Can type (mm)	200/202/206/209	200/202/206/209
Filling preassure (Mpa)	nomal pressure	nomal pressure
Max. filling temperature (°c)	Normal temperature or 65-95	Normal temperature or 65-95
