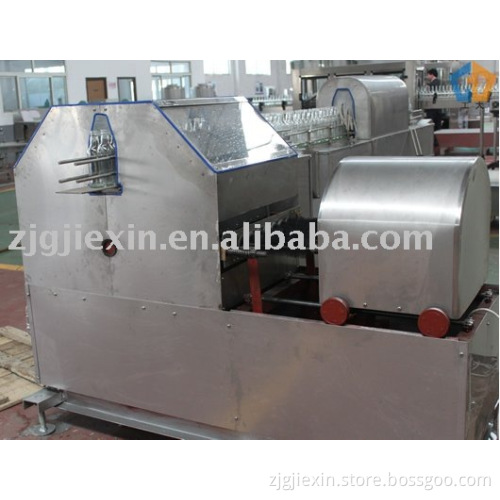

XP Model Bottle Washer For Glass Bottle

Specifications Bottle Washer For Glass Bottle

Production capacity: 2000-4000BPH

  The bottle washing machine consists of inside washer, auxiliary device of getting rig of label and steeper. It has advantages of safe, reliable, high efficiency, lower brokenrate of bottle and so on. The XP Model Bottle Washer For Glass Bottle is an ideal choice of washing crown-cap glass bottles for drink and ber factories.

Model		XP-I	XP-II
Bottle specofica	Bottle dia(mm) Bottle height(mm)	66-76±1 240-290	56-64 140-220
Working capac		2000-3000b/h	3000-4000b/h
Main washer	Main motor Inside washing motor Inside washing speed Feeding water pressure Bottle feeding speed Clutch plate speed Overall dimension Weight	1.1kw 0.55kw 505r/min 0.3Mpa 7.24m/min 7.28r/min 1890*2000*1370mm 1000kg	1.1kw 0.55kw 505r/min 0.3-0.4Mpa 7.24m/min 7.28r/min 1750*1320*1320mm 1100kg
Auxiliary divice	Chain way motor Chain way speed Outside washing motor Outside washing speed Water pump motor Water consumption Overall dimension Weight	0.75kw 11.13r/min 0.75kw 700r/min 0.37kw 2.8m³/h 2900*800*1350mm 550kg	0.75kw 11.13r/min 0.75kw 700r/min 0.37kw 2.8m³/h 2900*800*1350mm 600kg
Steeper	Liquid temperature Sloution concentration Overall dimension Weight kg	45-65 1.4% NaOH 2400*2650*2400mm 450kg	45-65 1.4% NaOH 2400*2650*2400mm 450kg
	Weight kg	2000kg	2150kg
