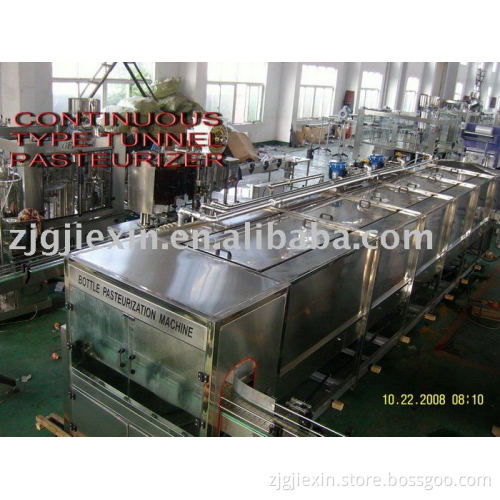

Continuous type tunnel pasteurizer

Specifications Continuous type tunnel pasteurizer

Production capacity:2000-10000BPH

  Based on advanced technologies from Germany, Italy and Japan, this tunnel pasteurizer has characterstic of smooth running, lower heat conductivity, high temperature precision in all temperzture sections. Its mesh belt and chain wheels are famous brand of REXNORD from Amercia.
  The Continuous type tunnel pasteurizer has 5 temperature sections, so temperature difference between section is small. It could assure good sterilizing effects, reduce bottle broken in order to save heat energy and reduce water consumption, This tunnel pasteurizer could process bottled beverage or beer products, which completely conforms to relevant technologic requirements.

Model	PLJ-3000	PLJ-6000	PLJ-10000
Capacity(b/h)	2000-3000	4000-6000	8000-10000
Bottle inlet temp	5-10
Bottle outlet temp	<45
Sterilizing temp	62-63(85-92)
Sterilizing time	10min(adjustable)
Steam pressure	0.5-0.6Mpa Saturated steam
Width of belt(m)	1.22	1.5	1.5
Circling water(m³/h)	10	20	40
Water consumption(m³/h)	1	1.5	2
	Water pressure:≥0.2Mpa, Water temp is 20ºC
kg/h Steam consumption	200	350	600
Overall dimension(mm)	8000*1500*1850	11000*1800*1850	15600*1800*1850
Total weight(kg)	4800	7200	9600
