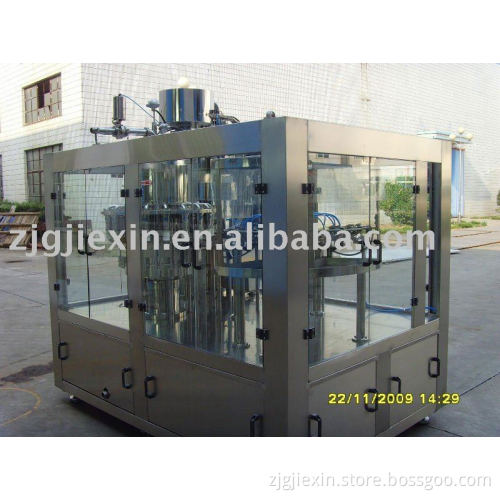

Tea Filling Machine (CGFR Series)

Specifications Tea Filling Machine (CGFR Series)

1.filling tea ,juice ect in the bottle

2.PLC control

Tea Filling Machine (CGFR Series) 1.Tea Filling Machine, Whose main technique was imported from Italy, can realize to asepsis filling. 2.Tea Filling Machine equipped with constant temperature controlling system. 3.It can apply to fill hot frult juice. Tea and other beveerage into thermal proof PET bottle by changing few parts. CGFR series 3-in-1 Tea Filling Machine is suitable for normal temperature filling or hot filling PET bottled no gas contained beverage.

Main Technical parameters
Model	CGFR 16126	CGFR 18186	CGFR 24248	CGFR 32328	CGFR 404010	CGFR 484812	CGFR 606015	CGFR 808020
Heads of washing, filling, sealing	16-12-6	18-18-6	24-24-8	32-32-8	40-40-10	48-48-12	60-60-15	80-80-20
Production capacity(bottle/hour)	3000-4000	5000-7000	8000-12000	12000-15000	16000-18000	20000-24000	24000-28000	36000-40000
Suitable bottle height	H=170-320	Φ=50-100 (330-1500ml)
Spraying pressure	0.25-0.3
Total Power	1.5+0.37	2.2+0.37	3+0.45+ 0.25	5.5	7.5	11	15	19
Overall dimension(L×W×H)	2300× 1680× 2650	2500× 1760× 2650	3100× 2100× 2650	3800× 2800× 2650	4000× 3300× 3400	4850× 3650× 3300	6500× 5400× 3500	7650× 6400× 2700
Weight	2600	3500	4650	6800	8500	1000	12500	16000
