PET bottle juice Filling machine

Specifications Juice Filling machine ,Juice machine

Packaging machinery ,PET bottle juice Filling machine ,

High capacity

Safty

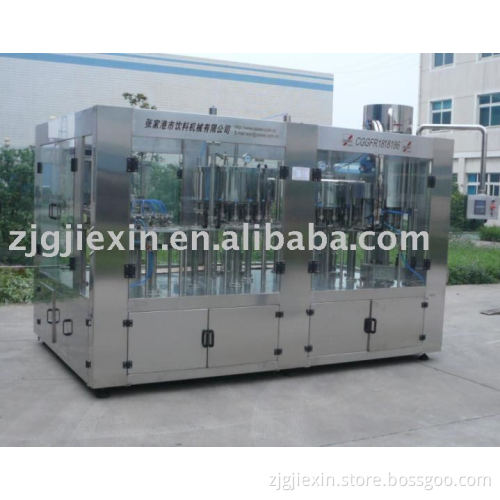

  CGFR series fully zutomatic rinsing, filling and rotary capping combined machine, whose main technique was imported from Italy, can realize to asepsis filling. Because it is equipped with constant temperature controlling system.   The juice filling machine can apply to fill hot fruit jujice, tea and other beverage into thermal proof PET bottle by changing few parts. The complete set of machine is more advancedin technique, compact structure, it is suitable for normal temperzture filling or hot filling PET bottle no gas contained beverage(Mineral water, purified water, distilled water, fruit jujice, tea and so on). As wellas washing, filling and sealing other liquid, such as vinegar. The juice filling machine is one of the most advanced filling machines at present.

Model	CGFR16126	CGFR18186	CGFR24248	CGFR323210	CGFR404012	CGFR505012	CGFR606015	CGFR808020
Heads of washing,filling,sealing	16-12-6	18-18-6	24-24-8	32-32-10	40-40-12	50-50-12	60-60-15	80-80-20
Production capacity(bottle/hour) (500ml)	3000-4000	5000-7000	8000-12000	12000-15000	16000-18000	20000-24000	24000-28000	36000-40000
Suitable bottle height (mm)	H=170-320 φ=50-100 (330~1500ml)	H=170-320 φ=50-100 (330~1500ml)	H=170-320 φ=50-100 (330~1500ml)	H=170-320 φ=50-100 (330~1500ml)	H=170-320 φ=50-100 (330~1500ml)	H=170-320 φ=50-100 (330~1500ml)	H=170-320 φ=50-100 (330~1500ml)	H=170-320 φ=50-100 (330~1500ml)
Spraying pressure (MPa)	0.25-0.3	0.25-0.3	0.25-0.3	0.25-0.3	0.25-0.3	0.25-0.3	0.25-0.3	0.25-0.3
Total Power (kw)	2.2+0.37	2.2+0.37	3+0.45	5.5	7.5	11	15	19
Overall dimension(L×W×H) (mm)	2400×1750×2500	2500×1860×2550	3100×2100×2550	3800×3000×2850	4650×3300×3400	4850×3650×3300	6500×5400×3500	7650×6400×2700
Weight (kg)	2600	3500	4650	6800	8500	10000	12500	16000
