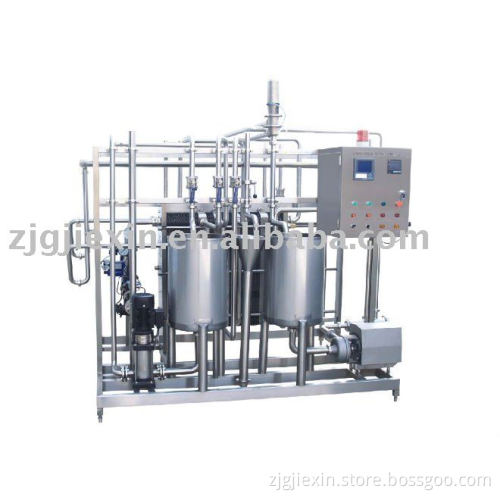

Milk plate pasteurizer

Specifications Milk plate pasteurizer

1.Milk plate pasteurizer

2.capacity:1t/h

3.PLC control

4.Touch screen

Milk plate pasteurizer 1.Milk pasteurizer
2.capacity:1t/h
3.PLC control
4.Touch screen    Milk plate pasteurizer     Milk plate pasteurizer is mainly applicable for processing (sterilizing, insulating and cooling) heat sensitive liquids, such as fruit juice, tea, milk and some wine products.
    Control methods of  Milk plate pasteurizer :semi-automatic control, full-automatic control(PLC control, touch screen display) Main accessories: material pump, balancing tank,hot water system, temperature controller and recorder,electric control sysem etc.

Working condition

Material capacity

1t/h

Temperature of material in

4°C

Temperature of ice water in

2°C

Designing requirements

Sterilizing temperature

75°C

Heat preservation period

25s

Temperature of material outlet

4°C

Main technical parameter

Name

Technical parameter

Name

Technical parameter

Equipment model

BR16-PUT-1T

Power consumption

4KW

Heat exchanging area

8square meter

Diameter of material inlet and outlet

32

Plates material

304

Diameter of ice water inlet and outlet

38

Sterilizing temperature

Automatic controlling and recording

Ice water consumption

3t/h

Returning valve working state

High temperature alarm, low temperature returning(automatic )

Controlling precision

Within ±1°C

Pressure of compressed air

Over 0.6Mpa

Maximum compressed air consumption

0.045M3/min

weight

1.2t

Outline dimension

1800(length)×1800(width)×1500(height )
