bag concentrated juice packing machine

Specifications bag concentrated juice packing machine

Treating Capacity(lts/h):6000

Suitable plastic bag:200L~1200L

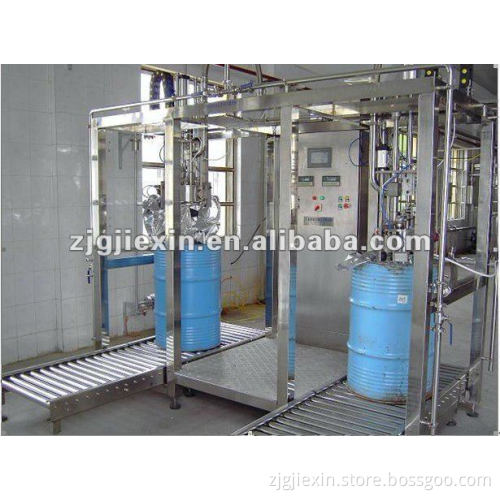

bag  concentrated juice packing machine      This equipment is suitable for the tomato, onion, pepper, strawberries, raspberries, carrots, peach and apricot, concentrated juice from the material after sterilization sterilized Plastic bags filling.concentrated juice packing,juice packing machine
  bag concentrated juice bag packing machine Feature:
   1.It can be divided into single head and double according to the output.    2.The overall structure is composed of a PLC control system, filling head, bag, open mouth fixed clamps cover clamp and closed cover clamp, check the Windows and lift platform.    3.Throughout the filling process ensure no bacteria to enter and keep sterile temperature 95 centigrade.   .

Model		DYWJ-2-1000
Treating Capacity (kg/h)		6000 kg/h
Heads of Filling		2
Motor Power(kw)		220V~  3.5 kw
Steam Consumption 8kgf/cm2		100kg/h
Volume of compressed air (m3/min)		0.8Mp 1.2m3/min
Overall dimension(mm)		2000×4800×2800
Suitable plastic bag (litres)		200L~1200L
