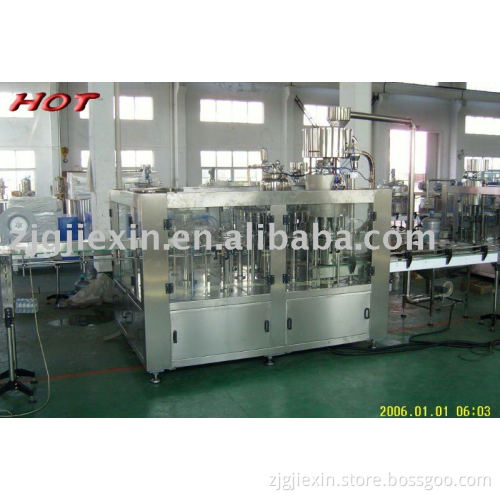

Juice drinks Hot Filling Machine

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu, China (Mainland)

Product Description

Specifications 1.Hot Filling Machine

2.Materials: stainless steel

3.Production:2000~24000BPH

Hot Filling Machine

Main Technical parameters
Model	CGFR 16126	CGFR 18186	CGFR 24248	CGFR 32328	CGFR 404010	CGFR 484812	CGFR 606015	CGFR 808020
Heads of washing, filling, sealing	16-12-6	18-18-6	24-24-8	32-32-8	40-40-10	48-48-12	60-60-15	80-80-20
Production capacity(bottle/hour)	3000-4000	5000-7000	8000-12000	12000-15000	16000-18000	20000-24000	24000-28000	36000-40000
Suitable bottle height	H=170-320	Φ=50-100 (330-1500ml)
Spraying pressure	0.25-0.3
Total Power	1.5+0.37	2.2+0.37	3+0.45+ 0.25	5.5	7.5	11	15	19
Overall dimension(L×W×H)	2300× 1680× 2650	2500× 1760× 2650	3100× 2100× 2650	3800× 2800× 2650	4000× 3300× 3400	4850× 3650× 3300	6500× 5400× 3500	7650× 6400× 2700
Weight	2600	3500	4650	6800	8500	1000	12500	16000
