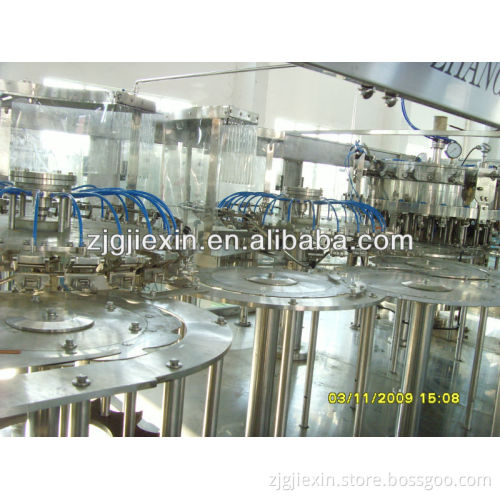

bottle juice hot filling machine

Specifications bottle juice hot filling machine

1.filling capacity:3000-40000b/h

2.PLC control

3.filling pulp juice ,juice in the PET bottle

bottle juice hot filling machine  introduce This mahcine consists of four parts: bottle washing, juice hot filling, and bottle capping in unite. It is suitable for hot  filling juice  ,pulp juice in the bottles     bottle juice hot filling machine  main features: 1. All parts, for instance, filling valve, which directly contact medium are made of stainless steel. So it conform to the requirements of food sanitation.
2. Sealing parts are made of heat-proofing rubber, in order to meet the technique requirements of users to sterilize the whole machine at high temperature.
3.  bottle juice hot filling machine  Using programmable controller to realize fully automatic control from bottles entering to finishing packing. 4.  bottle juice hot filling machine  Using advanced magnetic coupler to regulate cap-screwing torque, in order to assure capping quality.     bottle juice hot filling machine    washing part:       bottle juice hot filling machine  technical parameter

Main Technical parameters
Model	CGFR 16126	CGFR 18186	CGFR 24248	CGFR 32328	CGFR 404010	CGFR 484812	CGFR 606015	CGFR 808020
Heads of washing, filling, sealing	16-12-6	18-18-6	24-24-8	32-32-8	40-40-10	48-48-12	60-60-15	80-80-20
Production capacity(bottle/hour)	3000-4000	5000-7000	8000-12000	12000-15000	16000-18000	20000-24000	24000-28000	36000-40000
Suitable bottle height	H=170-320	Φ=50-100 (330-1500ml)
Spraying pressure	0.25-0.3
Total Power	1.5+0.37	2.2+0.37	3+0.45+ 0.25	5.5	7.5	11	15	19
Overall dimension(L×W×H)	2300× 1680× 2650	2500× 1760× 2650	3100× 2100× 2650	3800× 2800× 2650	4000× 3300× 3400	4850× 3650× 3300	6500× 5400× 3500	7650× 6400× 2700
Weight	2600	3500	4650	6800	8500	1000	12500	16000
