Elevator Rai/ Elevator Guide Rail/TK3, TK3A, TK5, TK5A Elevator Hollow Guide Rail

Hollow Elevator Guide Rail, Elevator Rail,Elevator Hollow Guide Rail,TK3 TK3A TK5 TK5A Eelevator Hollow Guide Rail,TK3 TK3A TK5 TK5A Hollow Rail    Elevator Rai/ Elevator Guide Rail/TK3, TK3A, TK5, TK5A Elevator Hollow Guide Rail

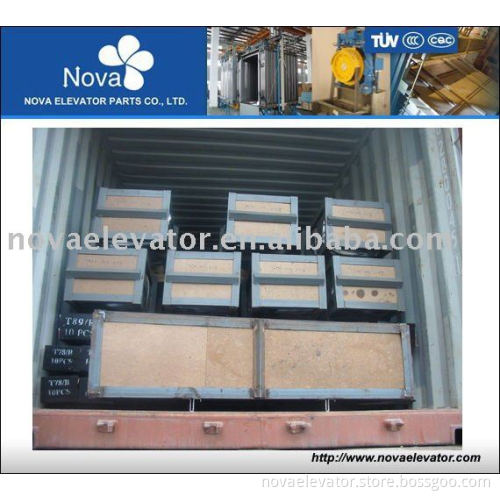

With more than 20 years experience in manufacturing and service, Nova has been supplying and exporting various types of elevator hollow guide rails in big volume every yea.     Product Description   1.Specifications: TK3, TK3A, TK5, TK5A    2.All rails meet ISO 7465 standard. 3.Fishplate, rail clip, bolts and nuts available 4.Standard export package: Tk5 and Tk5A:50pcs/bundle, TK3/TK3A:100pcs/bunndle 5.Dimensions of Hollow Guide Rail

Dimensions(mm)
Type	b1	c	f	h1	h2	k	m	R1	a	b3	l2	l3	dia
Hollow Guide Rail (Flat Edge)
Tolerance	±1.0		0.2	0		±0.4			+60'	±0.5	±0.5	±0.3
			-0.15	-0.5					+20'
TK3	75		2				20	5	90'	43	90	30	11
TK5	87	≥1.8	3	60		16.4	25	3		50	180	20	14
Hollow Guide Rail (Lifted Edge)
Tolerance	±1.0		0.2	±0.3	±1.0	±0.5			+60'	±0.5	±0.3	-0.5
			-0.15						+20'
Tk3A	78	0	2.2	60	10	16.4	25	3	90'	45	75	25	11.5
TK5A			3.2

     Nova welcomes you to visit our website or email us to get elevator hollow guide rail preliminary inquiry sheet for your selection to meet your specific requirements.
