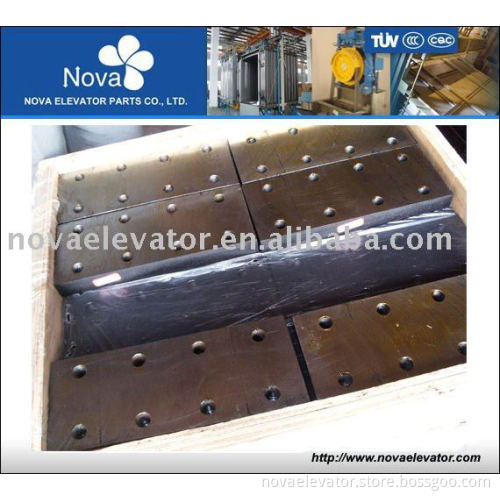

Elevator Guide Rail Fishplate

Specifications Elevator Guide Rail Fishplate

1.Material: Q235A.

2.Various thickness, other thickness on request.

3.Meet ISO7465 standard.

Fishplate, Elevator guide rail fishplate   Nova has been mainly supplying high quality elevator fishplate according to customers' request as follows. 1 Specification: Fishplate for machined guide rails, cold drawn rails and hollow guide rails. 2 Main dimensions:

Type	d	b2	b3	l1	l2	l3	v
Tolerance		±1.5	±0.2	±1.5	±0.2	±0.2	-0/+2
T45/A	9	50	25	160	65	15	8
T50/A	9	50	30	200	75	25	8
T70-1/A	13	70	42	250	105	25	8.5
T75-3/B	13	75	43	240	90	30	10
T78/B	13	90	43	240	90	30	10
T89/B	13	90	57.2	305	114.3	38.1	13
T90/B	13	90	57.2	305	114.3	38.1	13
T114/B	17	115	74	305	114.3	38.1	17
T127-1/B	17	130	79.4	305	114.3	38.1	17
T127-2/B	17	130	79.4	305	114.3	38.1	17
T140-1/B	21	140	92.1	380	152.4	31.8	25
T140-2/B	21	140	92.1	380	152.4	31.8	25
T140-3/B	21	140	92.1	380	152.4	31.8	30

 Nova welcomes you to visit our website for its more technical specifications or email us to get our elevator fishplate preliminary inquiry sheet for your selection.
