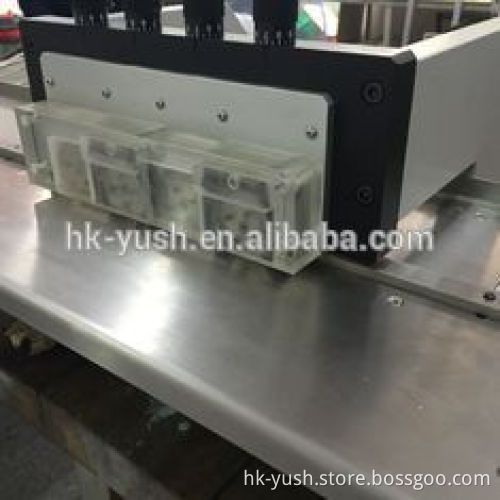

pcb depaneling machine cutting led strip with fast speed

  pcb depaneling machine cutting led strip with fast speed YSVC-4S     Specification  for pcb depaneling machine :
  Max PCB width: 12mm  Platform : 1.5 M /2.4 M length
Pcb depaneling Machine Size :   40*40*34 cm
The Longest Minimize : No limited
Minimize Speed :   0-520mm/s
Minimize thickness :  1.0-3.5mm
pcb depaneling Machine Weight :  70Kg     Features for pcb depaneling machine:
1. Guide can be adjusted vertically to suit different LED board.
2. Clearance between the circular blades can be precisely
adjusted by the knob
3. Upper and lower circular blades can be reused after regrinding.
4. Shape and sizes of the circular blades can be made according
to customer's specifications .
5. Standard 2.4M Stainless steel platform(could be custom make)
6. Lower cutting stress to improve depaneling effect 7. Depaneling 2 PCBs at one time, PCB width could be adjustable from(0~12mm)     Pcb depaneling Machine  Application :   Aluminum base board Copper substrate FR4 Glass fiber board V-CUT LED Aluminum PCB board   Pcb depaneling Machine  Maintenance:   Take off the power botton and clean the machine after finish working
Be careful to protect the upper and lower blade
Move the blades and protect them with machine oil
Check the screw fastening time to time

  Pcb depaneling Machine Delivery:
By air / sea / Fedex / DHL / UPS
Our forwarder partner or yours
Packing with wooden case
