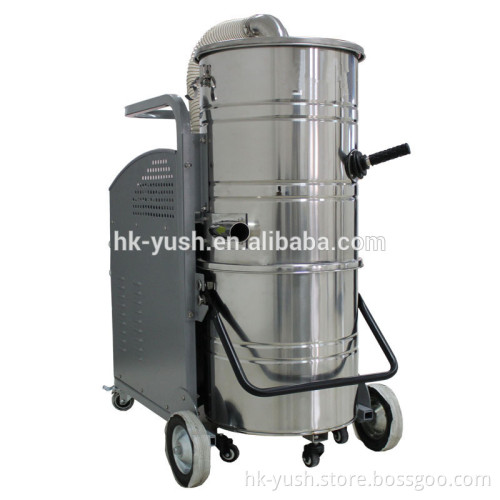

large-scale single-phase Industrial vacuum cleaners manufacturers supply / Stainless steel Industrial vacuum equipment

large-scale single-phase Industrial vacuum cleaners manufacturers supply / Stainless steel Industrial vacuum equipment -YS-3600     Technical parameters

[Product technical parameters]
Specifications	Unit	Value
Power:	W	5500
Voltage:	V	380
Container Capacity:	L	100
Suck bore:	MM	50
Filter area:	CM2	25000
Airflow:	M3/H	450
Noise:	Db	75
Vacuum suction:	Mb	320
Power line length:	M	8
Net Weight	KG	135
Gross Weight	KG	156
Product Size	MM	1040*640*1320
Packing Size	MM	1105*705*1330
Cooling mode:Weight:	Circulating cold air blast

  Case diagram:

Product Description 1. Configuration of Europe type plug socket. 2. HEPA(High Efficient Particulate Air) has big filter area, high filtration precision and the equivalent diameter in 3 microns particle filtration efficiency of more than 99.99%. 3. Pressure relief valve, when the motor reaches the peak value of the motor, the motor load increases, the current becomes large. Pressure relief valve automatically open (air from the pressure relief valve inlet into the motor), protect the motor from load increase. 4. Barometer, can control the load of the machine. 5. Manual filter shaker can remove star dust quickly on the surface of the filter, keeping the biggest suction vacuum; 6. Separated barrel is easy to dump. CUSTOM According customers’ requirements, we are equipped with a 3 kw 100 litres, 4 100 kw , 5.5 kw 100 litres and 7.5kw 100 litres of various models, with a strong suction and large capacity. 25000 square centimeters of the filtration system apply to all types of cleaning work very heavy factories;    Applications YS-3600  :Wide range of application. It  can absorb iron nails, iron, steel ball, gravel, sand, paper, cement dust, powder, solid-liquid mixture, and a small amount of liquid or viscous material, suitable for machinery manufacturing, metal processing, electronics, ceramics, chemical, food, medicine and other processing, can be used with form a complete set of production line or production equipment.
