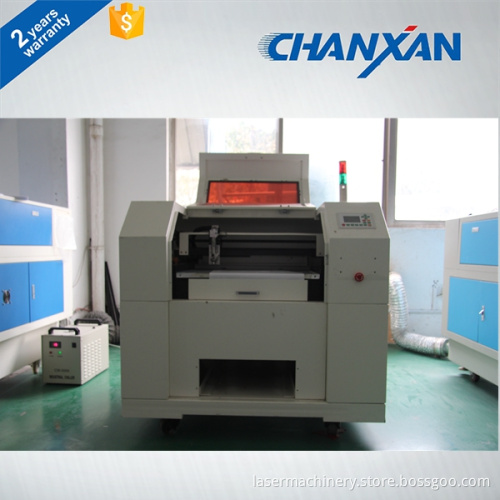

Good price High precision 600*400mm size laser cutting machine for marquetry

Good price High precision 600*400mm size laser cutting machine for marquetry Product Description  Equipment Advantage: 1,The machine use the screw transmission ,servo motor, cutting in high precision. 2,Laser cutting is non-touch, it will not damage the materials, cutting one-time forming, speed fast, no need to process the edge again. 3,No need open mold, it is the artifact in the new industry age. 4,This machine can cut half-through on the non-metal materials such as electronic film, foams, combined fabric, etc.       Application Field: Electronic materials cutting,thin film,combined film,toch screen,combined fabric,wood and bamboo art crafts, aircraft model,fancy toys and other non-metal materials high precision cutting.

Model	CW-650R
Working area	600mm*500mm
Laser power	30W-150W optional
Laser type	Imported CO2 RF metal tube
Lens	A full set laser transmission lens imported from USA
Cooling type	Water/air cooling system
Carving scanning speed	0-60000mm/min
Cutting speed	0-40000mm/min
Laser energy control	0-100% by software settings
Minimum font	Chinese:2.0mm*2.0mm,English:1.0mm*1.0mm
Maximum scanning accuracy	4000 DPI(could equip with CCD vision system on demand)
Positioning accuracy	≤+0.01mm
Control system	DSP control system
Graphic format supported	DST/PLT/BMP/DXF/DWG/AL/LAS
Software supported	TAJIMA/CORELDRAW/PHOTOSHOP/AUTOCAD AND ETC
Color separation	available
Drive system	Servo motor system by imported
Accessories	Exhaust fan and pipe
Power	AC 110V/220V ±10%,50HZ/60HZ
Working condition	Temperature:1-45℃,humidity:5-95%
Optional Configuration:	knife/sawtooth work table, lift platform ,follow-up auto focus system, Professional laser head

  Company Information   Suzhou Chanxan Laser Technology Co.,Ltd is situated in the Wuzhong economic development zone, Suzhou city. We specialized in research and design, produce, sale and customized various of high-end laser machines and popularize the laser application technical..Our products and service are widely used in research education, metal sheet cutting and welding, laser mark code, electronic materials, LED, adverting materials, medical products, crafts garment, textile and etc fields. Our Services   Training Service
  Our technician is available to your factory and offer training of how to use our machines.
As well, you may send your technician to our company to learn how to operate machines. Quality Guarantee   We arrange final test before shipment. We run the machine without material for a few days, and then cut materials for test. After making sure machine is the best performance, then ship out the machine. Operating guide   Explain the use of machines and software. Guide the customer proper use, extend product life and reduce energy consumption.
Machine maintenance&Warranty
  Explain the maintenance of machine parts to extend product life and save the energy consumption
The whole set of machine warranty period is 1 year.     Packaging & Shipping   production show
