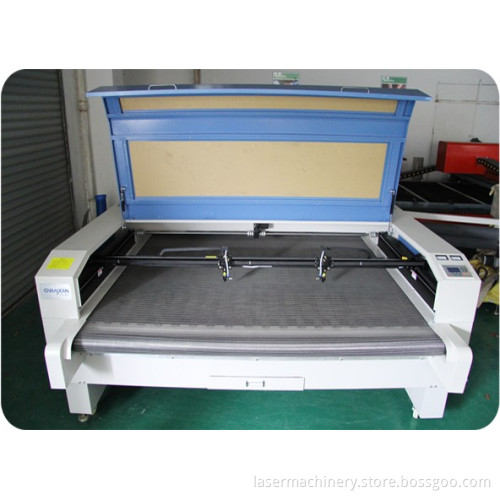

co2 laser acrylic cutting machine

laser acrylic cutting machine   Product Description Whether you are a dealer or an end user, as long as you are interested in our laser machines and related products, once you contact us, we will arrange a particular professional at your service to help you have a deep understanding of CHANXAN and our products or answer your questions on laser products and laser applications. In order to keep open and convenient communication with you, CHANXAN integrates sales and service as one and the same responsible person is in charge of your sales and service. On-Time Delivery
After you confirm the order, we will figure out the delivery date according to the model and production schedule. For general models, we will arrange production in 7 days or so and we will notify you of the exact phase of production process.  Production Process:
Machine Case---Mechanical Parts Installation---Electrical Parts Installation---Machine Commissioning--- Aging Test for at Least 24 Hours --- Nameplate, Logo and Packaging---Shipping

Model	CW-1610TT/CW-1810TT
Process area	1600mm*1000mm/1800mm*1000mm
Laser power	60W-150W optional
Laser type	CO2 laser glass tube
Lens	laser transmission lenses in full set imported from US
Cooling type	water cooling system
Carving scanning speed	0-60000mm/min
Cutting speed	0-40000mm/min
Laser energy control	0-100% by software settings
Minimum font	Chinese:2.0m*2.0m,English:1.0m*1.0m
Maximum scanning accuracy	4000 DPI(could equip with CCD vision system on demand)
Positioning accuracy	≤+0.01mm
Control system	DSP control system
Graphic format supported	DST/PLT/BMP/DXF/DWG/AL/LAS
Software supported	TAJIMA/CORELDRAW/PHOTOSHOP/AUTOCAD
Color separation	available
Drive system	step motor with belt drive system
Accessories	exhaust pipe and fan
Power	AC 110V/220V ±10%,50HZ/60HZ
Working condition	Temperature:1-45℃,humidity:5-95%
Optional Configuration:	Honeycomb/ knife/auto feeding net belt work table,

1.Adopts multi laser heads, improve producing efficiency significantly. 2.Professional developed laser control system, ensure laser controlling separately and stable operating. 3.Installing two or more laser heads, auto feeding system or camera system according to customers need. 4.Commonly used in hollowing-out of textile fabrics and batch producing of small handicraft cutting   production show   Packaging & Shipping   FAQ Q: Do I need two laser machines to engrave and cut separately? A: No, the laser machines we provide are capable of both engraving and cutting. One machine alone can fulfill the two purposes. Q: Do the laser machines need to be connected to a laptop or desktop computer to work?
A: Yes, either is ok. It supports Windows 2000, Windows XP, Win 7 and other operating systems Q: What kind of graphic format does it support?
A: JPG, PNG, BMP, PLT, DST, DXF, CDR, AI, DSB, GIF, MNG, TIF, TGA, PCX, JP2, JPC, PGX, RAS, PNM, SKA, RAW , etc. Q: How to distinguish laser tubes with different powers and applications?
A: 1. Laser tube length (relatively speaking, the longer, the bigger)
2. Laser tube diameter (relatively speaking, the thicker, the bigger)
3. The bigger a laser tube power is, the deeper the machine can cut, but its light spot is bigger. So, it is better to use a machine with a low-power laser tube to engrave, such as 40W, 50W or 65W.
