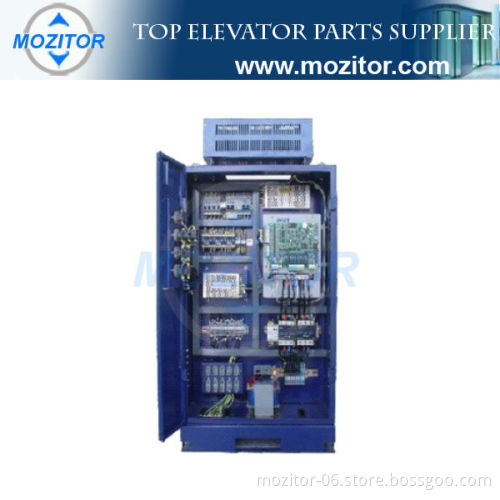

high quality controlling cabinet|elevator control system|electrical control box

Product Description    1.Floor Height Data Automatic Correction Each time the elevator passes through the leveling position, system will auto correct the error position with respect to the shaft parameter self-learn position data base to maintain consistent ride comfort.   2.Elevator Position Auto Calibration Each time the elevator enters the terminal floor zone, system will self-calibrate the position counter with respect to the 1st slowdown limit switch so that elevator over travel operation will be eliminated.   3.Preset-able Hall Display Allows user to preset every floor display with additional number (0-9) or character (A-Z) for non-standard display.   4.Cancellation of Unintended Car Call Passenger needs to press the unintended floor button twice to cancel the false call.   5.Reverse Command Cancellation When elevator travel to the terminal top or bottom floor, system cancel all the car calls registered for the reverse direction operation.   6.Full Load By-pass When the elevator load exceeds the full-load set value, (generally >80% load capacity) the elevator will not respond to hall calls when passing floors. However, during this event hall calls can still be registered; they will be serviced on the travel (simplex), or by other elevator service (duplex or group control)   7.Anti-Nuisance Function System identifies the number of passengers in the car and automatically compares the number of passengers with the number of instructions registered in the car. If an excessive number of calls are registered, then the system considers it is nuisance status and cancels all the car calls/ The passengers need to re-register the desired calls again.   8.Overload Protection When the elevator is at stationary and the load capacity excesses the rated load capacity, buzzer will sound together with the overload light on. Elevator will halt until overload alarm is trigger off.   9.Duplex Control It needs only 3 wires to set up without the needs of group controller board.   10.Group Control Group control with less than 8 elevators is based on fuzzy logic control theory.   11.Independent Mode Elevator does not respond to any hall calls and closes the door automatically.   12.Reversal Running Protection Systems continuously monitor the encoder direction via “AB” phase. System will stop immediately when wrong direction is detected, brake will be applied and system will trip on level 5 fault code.   13.Anti-slip Protection Systems continuously monitor the speed of the elevator via “AB” phase. System will stop immediately when no speed feedback from the cage, brake will applied and system will trip on level 5 fault code.   14.UP/DOWN Over-Speed Protection The over-speed detector gives an assurance that the speed of car cannot exceed the range of secure speed, thereby guaranteeing the safety of both passengers and cargo.   15.Output Contactor Monitoring By monitoring the drive output current state, system can determine whether the output contactor circuit is abnormal before release the motor’s brake.   16.Encoder Fault Protection System uses a high-speed encoder for close-loop vector control. If the encoder fails, the system stops automatically to prevent a runaway failure.   17.Optimum Velocity Profile Generator The lift controller will optimize the velocity profile based on the desired travel distance and auto-generate velocity profile to achieve direct-to-floor landing.   18.Time-Sharing & Peak Service Flexible setting of the time-sharing service time period and the corresponding time-sharing service floors.           Company Information TOP 10 Elevator Parts Exporter In China   Our Advantages Factory passed ISO9001 We’ve exported to more than forty countries,and built stable business relationships with customers from over 30 countries such as Canada,USA, Spain, South Korea, Iran, Turkey, Egypt, India, Vietnam, Jordan, Lebanon, Saudi Arabia, Russia, etc.Also we get highly trusted about the quality from our customers. Our policy is to offer our customers direct and complete support, in terms of materials, components and services provided before and after every sale.   ONE-STOP ELEVATOR PARTS SUPPLIER       Guide System  (guide rail, fishplate, rail clip, rail bracket, anchor bolts, guide shoes )   Traction System  (traction machine, wire rope, rope attachment, deflector sheave)   Cabin System  (cabin, car frame, counterweight frame, counterweight block, compensating chain device)   Door System  (door operator, langing door device, door panel, safety light curtain)   Safety Protection System  (safety gear, speed governor, rope brake, buffer)   Electrical Control System  (push button, COP&LOP, integrative controller, elevator cable)   Complete Elevator  (passenger elevator, panoramic elevator, home elevator, cargo elevator, hospital elevator, dumbwaiter, escalator, moving walks) Packaging      Global Exhibition   FAQ WHY CHOOSE US?   Guaranteed Quality —— 100% Original Manufacture Product   Best Price —— Most Popular Product With Factory Price    Fast Delivery —— Delivery Time < 90% Supplier   One Step Elevator system Provider—— Saving Your 90%Time    After Service Protection —— Nearly 0 Quality Complain In The Last 3 Years     Powerful Resource Support —— Base on Top10 Manufacture In Elevator Industry     APPLICABLE PLACE Depending on its reliable performance and superior quality ,Our Elevator is widely used in residential buildings, public places, commercial office buildings, hotels, sightseeing buildings and hospitals. It includes glass doors, fire doors series, etc..    SALES IN WORLD
