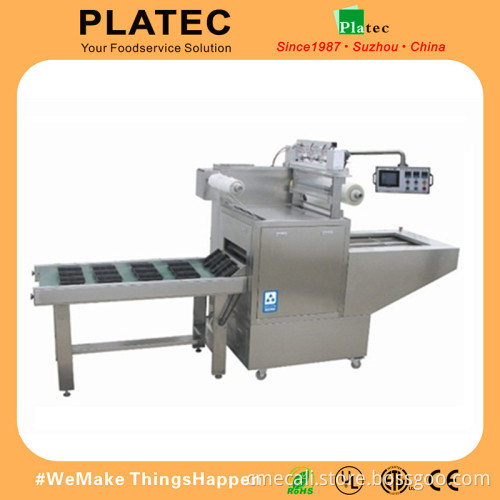

full automatic plastic bowl sealing machine with MAP function

    Features OF plastic bowl sealing machine : MAV-680  bowl sealing machine is suitable for modified atmosphere packaging of all kinds of foods such as cold fresh products, cooked products, moon-cake, pastry, melon and fruit, fast food and vegetables. Technical parameter plastic bowl sealing machine :

Model	MAV-680
Mould specification	680 x 320 x 100 mm
Packing speed (boxes/h)	2000-3000 boxes/h
Rate of gas exchanger	≥99.5%
Number of gas mixing	≤3
Work pressure(Mpa)	0.6~0.8
Power(kw)	2
Power source	AC220/50Hz
Machine dimension(mm)	2200 x 1180 x1800 mm
Machine weight(kg)	960kg

   Working Principle   1.Using electric, gas, machine control, the programmable logic controller with touch screen to realize man-machine interface dialogue, each part of the action and control parameters can be set, modified. Control is convenient and reliable, low failure rate. 2.will have to fill in the packaging of goods into the next mold cavity after the packaging process is automatically completed: vacuum, inflatable - hot press sealing - cutting - packaging products. 3.the main components of the frame are made of stainless steel, in line with food hygiene requirements. 4.compact structure, small area, easy to operate. 5. the shape of the mold can be selected by the user to configure the box shaped   Main configuration of the equipments:

No	Name	Brand
1	Programme control	PLC, Human-machine Interface(HMI), Japan Panasonic
2	Pneumatic parts	Taiwan AIRTC
3	photoelectric tracking	Japan, Omron
4	Outer	SUS304
5	Mould	Stainless steel and Hard Alloy
6	Motor	Stepper motor

    Remark: All the machines have CE certificate. Packing samples BY plastic bowl sealing machine :
