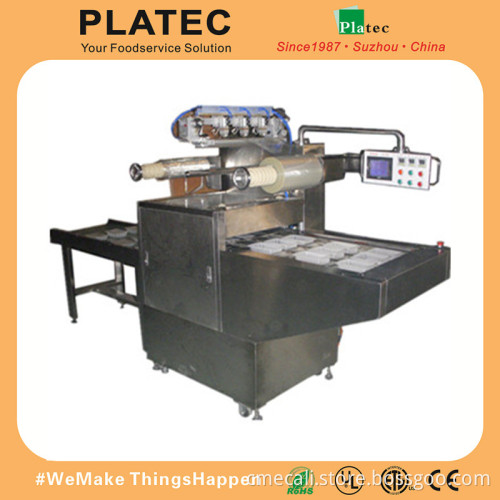

MAP tray sealer,Model 550,full-auto

Features: Automatic MAP tray sealer is suitable for modified atmosphere packaging of all kinds of foods such as cold fresh products, cooked products, moon-cake, pastry, melon and fruit, fast food and vegetables. The machine can help keep the food fresh for longer time, substitute the air inside the tray with oxygen, carbon dioxide and nitrogen, selled in supermarket. We supply serious of MAP tray sealer machine, including MV-280/350/380/550/680/750, MV 280 and MV-350 are semi-automatic, while MV-380/550/680/750 are full-automatic. working Principle 1.Using electric, gas, machine control, the programmable logic controller with touch screen to realize manmachine interface dialogue, each part of the action and control parameters can be set, modified. Control is convenient and reliable, low failure rate. 2.Will have to fill in the packaging of goods into the next mold cavity after the packaging process is automatically completed: vacuum, inflatable - hot press sealing - cutting - packaging products. 3.The main components of the frame are made of stainless steel, in line with food hygiene requirements. 4.Compact structure, small area, easy to operate. 5.The shape of the mold can be selected by the user to configure the box shaped.   Technical parameter:

Model	MAV550
Mould specification	550 x 320 x 60 mm
Packing speed (boxes/h)	1000~1800 boxes/h
Rate of gas exchanger	≥99.5%
Number of gas mixing	≤3
Work pressure(Mpa)	0.6~0.8
Power(kw)	2
Power source	AC220/50Hz
Machine dimension(mm)	1760 x 1020 x1800 mm
Machine weight(kg)	680

    Main configuration of the equipments:

No	Name	Brand
1	Programme control	PLC, Human-machine Interface(HMI), Japan Panasonic
2	Pneumatic parts	Taiwan AIRTC
3	photoelectric tracking	Japan, Omron
4	Outer	SUS304
5	Mould	Stainless steel and Hard Alloy
6	Motor	Stepper motor

   All the machines have CE certificates   pictures of our machines in stock     pictures of the details of the machine                                                               Tray samples: for more discussion and communication, please feel free to contact Emily Emily phone: +86 13913127719 Skype: emily.zhao0706
