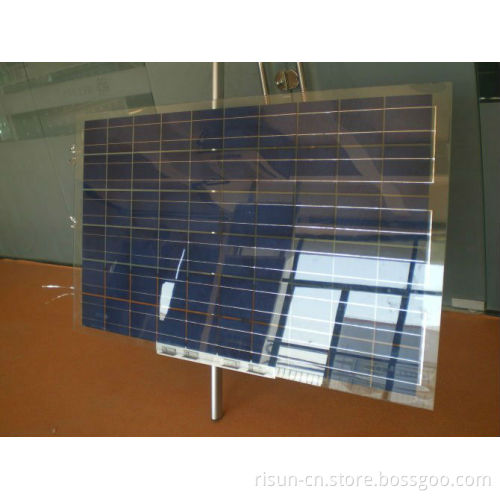

double glass PV solar panel
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China (Mainland) |
|---|
Rooftop and harsh environments.
double glass PV module
this module have good appreance
double glass PV module Specifications this module have good appreance,good Light transmittance,heat insulation,sound insulation
Applications Rooftop and harsh environments. double glass PV module
this module have good appreance,good Light transmittance,heat insulation,sound insulation Introduction double glass PV module is lamilated by 6mm tempered glass ,pvb foil,125 mono solar cells or 156 poly cells ,pvb foil and 6mm tempered glass . Choice of Material
Item | Discription |
Module Size | From min 300×300mm to Max 2000×3000mm |
GlassType | Full-toughened, Semi-toughended |
Thichness of Glass | 3.2mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm |
Construction | 3.2mm-12mm glass+EVA/PVB+cell+EVA/PVB+3.2-12mm glass |
Cell Type | Monocrystalline, Polycrystalline |
Cell Color | Blue, Black. Orang, Red, Bronze |
Cell Size | 5inch,6inch |
Item | Discription | |
Type of connection | Juntion box on back or Juntion box on side | |
Shape | Rectangle, Square or Abnormal Shape(Customized) | |
Transparency | 5%,10%,20%,25%,30%,35%,40%,50%,60% | |
Efficiency of Module | 150Wim2 (5% Transparency) | 140W/m2 (10% Transparency) |
| 130Wim2 (20% Transparency) | 120W/m2 (25% Transparency) |
110W/m2 (30% Transparency) | 100W/m2 (35% Transparency) | |
90W/m2 (40% Transparency) | 80W/m2 (50% Transparency) | |
Item | Discription | ||
Max System Votlage | 1000VDC | ||
Standards | IEC61215, IEC61730, GB/T9535-1988 | ||
Deviation of Glass | L < 1000,2 | 1000≤L<2000,3 | 2000≤L<3000,4 |
Guarantee | 5years | ||
Warranty of Efficiency | 90% minimum of output power after 10 years | ||
| 80% minimum of output power after 25 years | ||
