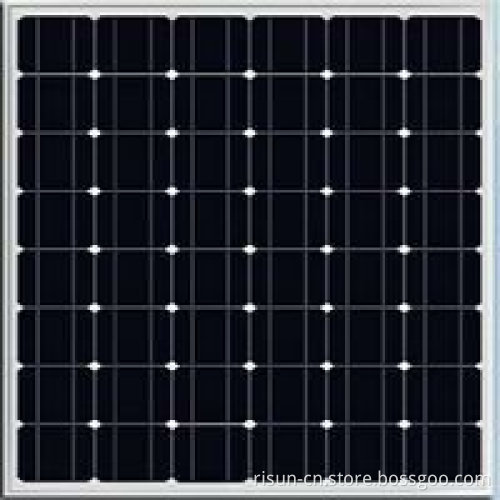

RSM48-156M mono-crystalline silicon solar panel

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu, China (Mainland)

Product Description

RSM48-156M mono-crystalline silicon solar panel 1. Specification:

Cells	Monocrystalline silicon solar cells 156x156mm
Number of cells	48(6*8)
Dimensions (mm)	132499235
Weight (kg)	15

2. Electrical Characteristics

Values at Standard Test Conditions STC (Air Mass AM1.5, Irradiance 1000W/m², Cell Temperature 25°C)
Model	RSM-170	RSM -175	RSM - 180	RSM - 185	RSM- 190	RSM- 195
Max Power Pm(W)	170	175	180	185	190	195
Max Power Voltage Vm (V)	23.26	23.34	23.47	23.67	23.71	23.87
Max Power Current Im (A)	7.31	7.50	7.67	7.82	8.02	8.17
Open-Circuit Voltage Voc (V)	29.40	29.47	29.53	29.60	29.67	29.73
Short-Circuit Current Isc (A)	8.12	8.26	8.39	8.52	8.65	8.78
Cell Efficiency(%)	14.53	15.1	15.7	15.8	16.2	16.3
Module Efficiency(%)	13.0	13.9	14.4	14.8	15.0	15.46
Maximum System Voltage (V)	DC 1000(TUV) / DC 600(UL)
Power Tolerance(%)	0~+3
Series Fuse Rating (A)	15

3.Components & Mechanical Data

Front Glass	High Transparency Tempered Glass, 3.2mm
Junction Box	Pass the TUV Certificate PPO(black/IP65)
Output Cables	4mm2/0.9m
Connectors	MC4(UV resistance and self-locking/IP67)
Frame	Anodized aluminum alloy type 6063-T5
Encapsulation Material	EVA (0.50 ± 0.03mm thickness)
Back Foil	White TPT (0.32 ± 0.03mm thickness)
Fixing adhesive	Silicone Sealant(White)
Temperature Range(°C)	-40°C to +90°C
Max Load(Kpa)	2.4 wind load / 5.4 snow load
Temperature Range(°C)	-40°C to +90°C

4. Temperature Coefficients

NOCT (°C)		47±2
Temperature Coefficient of Pm (%/°C)		-0.45±0.05
Temperature Coefficient of Isc (%/°C)		0.05±0.01
Temperature Coefficient of Voc (%/°C)		-0.35±0.02
