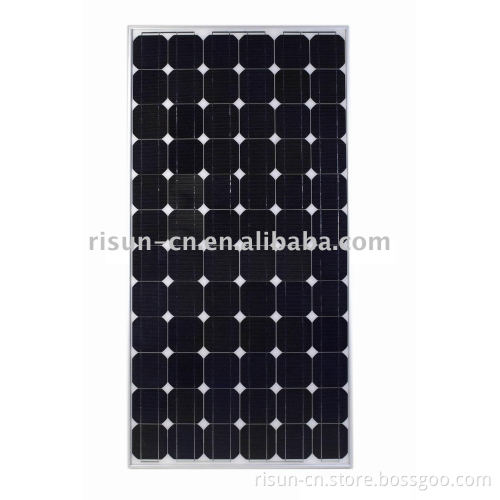

RISUN Monocrystalline silicon module

Max-Power Pm(W)

175

180

185

Power Tolerance (%)

0/+3

0/+3

0/+3

Max-Power Voltage-Vm(V)

36.2

36.8

37.5

Max-Power Current-Im(A)

4.85

4.9

4.95

Open-Circuit-Voc(V)

43.9

44.2

44.5

Short-Circuit-Isc(A)

5.3

5.35

5.4

Cell Efficiencyηc(%)

16.4

16.8

17.3

Module Efficiency ηm(%)

13.7

14.1

14.5

STC Conditions(AM1.5,1000W/m*m,Cell temperature 25°C)

Number, Type and Arrangement of cells

72 psc, Monocrystalline silicon6*12)

Cell Size

125×125mm

No. of Bypass Diodes

3pcs

Max. Series Fuse

9A

Pm Temperature Coefficient

-0.45%/°C

Isc Temperature Coefficient

0.05%/°C

Voc Temperature Coefficient

-0.35%/°C

NOCT-Nominal Operating Cell Temperature

47°C(±2°C)

MECHANICAL CHARACTERISTICS

Cable type,Diameter and Length

4mm²,1000mm

Dimension A*B*C

1581 x 808 x 45mm

Weight

15.6kg

No. of Draining Holes In Frame

8

Glass,Typer and Thickness

High Transmit, Low Iron, Tempered Glass 3.2mm

PACKAGING CONFIGURATION

Packing Configuration

23pcs/Box

Quantity/Pallet

23pcs/Pallet

Loading Capacity

644pcs/40ft, 276pcs/20ft
