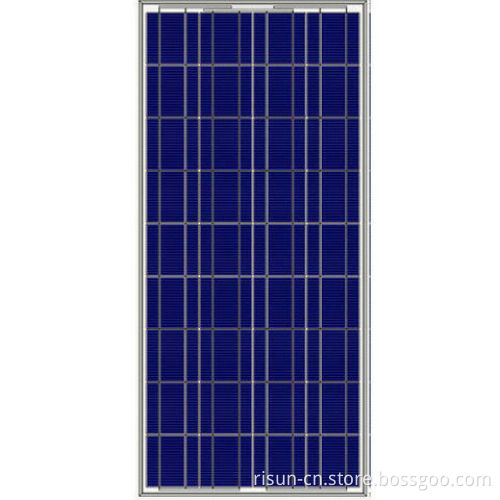

quality guaranteed 60W poly Solar panel high efficiency

Specifications 60W poly Solar panel

-Tolerance 3%

-3 Bus Bar Configuration

-Plug/Play Connectors

-High Transmission,Low Iron Tempered G

 Quality Guaranteed 60W poly Solar Panel High Efficiency   Advantages 1. Reliability with guaranteed +/-3% output power tolerance. 2. High conversion efficiency, excellent performance in weak light. 3. High transmission low-iron tempered glass. 4. Rugged design to withstand high wind pressure and snow load, and extreme temperature variations. 5. Rigorous quality control meeting the highest international standards ISO9001 quality management system.   Recommended applications 1. Residential roof top systems 2. On-grid utility systems 3. commercial or industrial systems   Warranty 5years product warranty 90% power output 10 years 80% power output 25 years      60w poly solar panel Specifications

Module		Type (36 Series)
Encapsulation		Glass/EVA/Cells/EVA/TPT
Parameters		RSM36-156P/60W
Max power	Pm(W)	60
Tolerance		+/-3%
Open circuit voltage	Voc(V)	44.48
Short circuit current	Isc(A)	5.31
Max. power voltage	Vmp(V)	36.18
Max. power current	Imp(A)	4.7
Dimensions	(L*W*H)	770x676x25mm
Net Weight	(kg)	7.5
Max. system voltage	(V)	1000VDC
Operate Temp. Scope		-40/+85'C
Resistance		227g steel ball fall down from 1m height and 120m/s wind
Warranty		Pm is no less 90% in 10 years and no less 80% in 25 years
STC		(Standard Test Condition: 1000W/m2, AM1.5, and 25'C)

      Factory Picture Show     Production picture show   Risun Solar Panel 60W Poly Solar Panel Quality assurance testing     Thermal cycling test   Thermal shock test   Thermal/Freezing and high humidity cycling test   Electrical isolation test   Hail impact test   Mechanical, wind and twist loading test   Salt mist test   Light and water-exposure test   Moist carbon dioxide/sulphur dioxide       Payment Safety     Payment term: 20% advanced as deposit by T/T or L/C, the rest payment paying after received B/L copy.       Frequently Asked Questions     1. What is the brand for this 280W solar panel?    ---RISUN solar, we are the manufacturer of this 280W solar panel, small order is available, wholesales is welcomed   2. What kind of Solar Cells does it have?
---Polycrystalline 156*156mm.
3. Is the front panel Glass or Plastic?
---Tempered glass 3.2mm thickness, Light transmittance up to 95%.
4. Does it meet Europe Standards for Solar Energy?
---This is TUV approval products, all the producing procedure apply TUV&CE.
5. What is the Efficiency level?
--- Between 17-18.9% for solar cells.


IMPORTANT INFORMATION:

1. All our solar panels following IEC6125, IEC61730 standard, Have CE, TUV, ISO Certifications, also on Australia Clean Energy Council (CEC) list.

2. The solar cell efficiency is 16%-18.5%. All material certificate by TUV IEC test, meet the solar panel 25 years at outdoor performance.

    shipping time and package safety   Shipping date: 5-15 days after we received deposit by the first available vessel to your country.     We will do our best to take care of you and if you have any questions please do not hesitate and feel free to contact us.
