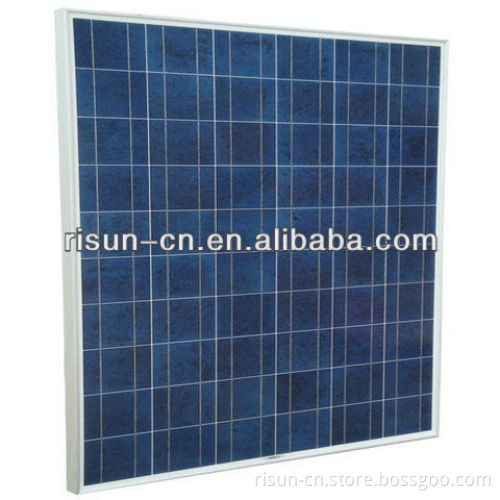

High quality 200W poly solar panel

Max-Power Pm (W)

200

Power Tolerance (%)

±3%

Max-Power Voltage-Vm (V)

26.26

Max-Power Current-Im (A)

7.63

Open-Circuit-Voc (V)

33.6

Short-Circuit-Isc (A)

8.11

Cell Efficiency η c (%)

14.10

Module Efficiency η m (%)

12.20

STD Conditions(AM1.5,1000W/m*m,Cell temperature 25°C)

Number, Type and Arrangement of Cells

60pcs, Polycrystalline Silicon (6*10)

Cell Size

156×156mm

No. of Bypass Diodes

6pcs

Max. Series Fuse

15A

Pm Temperature Coefficient

-0.45%/°C

Isc Temperature Coefficient

0.05%/°C

Voc Temperature Coefficient

-0.34%/°C

NOCT-Nominal Operating Cell Temperature

47°C(±2°C)

MECHANICAL PROPERTIES

Cable Type, Diameter & Length

 4mm²,950mm

Dimension A*B*C

 1650×990×40mm

Weight

 20kg

No. of Draining Holes In Frame

   8

Glass Type and Thickness

High Transmit,

Low Iron,

Tempered Glass 3.2mm

PACKAGING CONFIGURATION

Packing Configuration

      23pcs/Box

Quantity/Pallet

      12pcs/Pallet

Loading Capacity

      644pcs/40ft or

      276pcs/20ft
