190W Poly Solar Panel hot sale in Philippines,Pakistan,South Africa etc...

Specifications 190W poly solar panel specification:

1. Certification:TUL CE IEC ISO

2. OEM:accepted

3. Life:25 yesrs

                                                    190W poly solar panel

Model	RSM54-156P/190W
Nominal power (Pm)	190 Watt
Power allowance	±3%
Optimized working voltage (Vm)	26.22V
Optimized working current (Im)	7.25A
Open circuit voltage (Voc)	33.2V
Short circuit current (Isc)	7.84A
Module efficiency	13.5%
Withstanding voltage	DC1000V
Dimension of module (L)	1488×990×40mm
Net weight (Kg)	17.8kg
Packing ( pcsMcarton)	2
Dimension of package (L)	1532×1100×150mm
Volume (m3)	0.21
Gross weight ( Kg/carton)	40
Dimension of pallet	1562×1080×1950mm
Quantity in a 40’ container	20carton/pallet×13 pallet =260carton (520pcs)
Time returnable &replaceable	5 years
Power attenuation	Pm is no less 90% in 10 years and no less 80% in 25 years

                           Main Characteristics 1. High efficiency & high stability 2. Monocrystalline or Polycrystalline solar cells, range from 5Wp to 290Wp. 3. Unique frame design to reinforce sealing and there are drainage holes on the border components, eliminate the framework of deformation caused by rain or snow accumulated in the framework. 4. Strong aluminum frames to strengthen the load hold and to stand against high wind. Special mounting holes on the frames suitable for long term mounting. 5. High transparency low iron tempered glass with enhanced stiffness and impact resistance property. 6. Advanced EVA encapsulation system with multi-layer back sheets to better product modules 7. Output tolerance: +/-5%, cell efficiency above 16% 8. Approvals: CE, IEC61215/61730, ISO, TUV 9. Back: TPT
10. Encapsulant :EVA

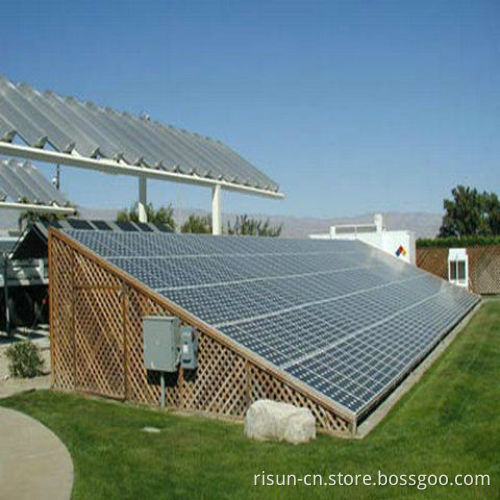

11. Frame: Aluminum alloy 12. Preeminent aesthetic appearance and easy installation   Applications 1.Any large or small on-grid and off-grid solar power stations 2.Commercial/industrial building roof-top systems 3.Residential roof-top systems 4.Any commercial or industrial ground mount systems 5.Other industrial and commercial applications   Warranty 1.10 years for product defect, 10 years for 90% of performance, 25 years for 80% of performance 2.Peak power of single module in guaranteed in ±3% power tolerance. 3.Average power of modules in single order is guaranteed not less than the peak power. 4.Rigorous quality control meets the highest international standard     Any question please ask me feel free, and please add me Skype:betty.wang.0724
