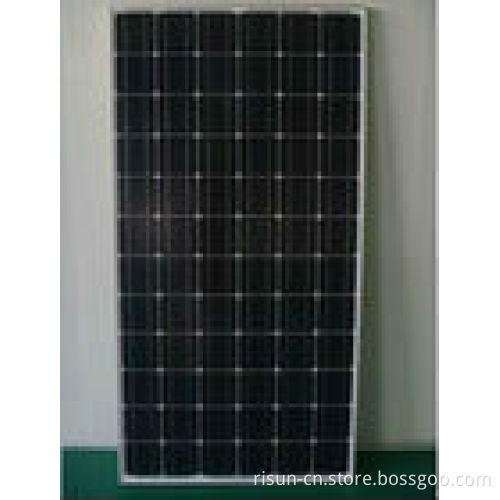

high quality 180W Mono Solar panel
- Delivery Time:
- 7 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Jiangsu, China (Mainland) |
|---|
Product Description
Product Description
Solar Panel Specifications Mono 170W—190W
| Module | Type (36 Series) | |||||
| Encapsulation | Glass/EVA/Cells/EVA/TPT | |||||
| Parameters | RSM72-125M/170W | RSM72-125M/180W | RSM72-125M/190W | |||
| Max power | Pm(W) | 170W | 180W | 190W | ||
Tolerance | +/-3% | |||||
| Open circuit voltage | Voc(V) | 44.48 | 44.88 | 45.38 | ||
| Short circuit current | Isc(A) | 5.31 | 5.44 | 5.58 | ||
| Max. power voltage | Vmp(V) | 36.18 | 36.42 | 36.66 | ||
| Max. power current | Imp(A) | 4.7 | 4.95 | 5.19 | ||
| Dimensions | (L*W*H) | 1580x808x40mm | ||||
| Net Weight | (kg) | 7.5 | ||||
| Max. system voltage | (V) | 1000VDC | ||||
| Operate Temp. Scope | -40/+85'C | |||||
| Resistance | 227g steel ball fall down from 1m height and 120m/s wind | |||||
| Warranty | Pm is no less 90% in 10 years and no less 80% in 25 years | |||||
| STC | (Standard Test Condition: 1000W/m2, AM1.5, and 25'C) | |||||
