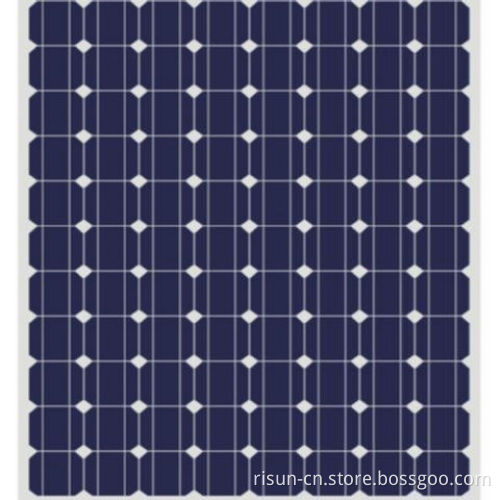

Hot sell solar panel 270W Mono Solar Panel

Hot sell solar panel 270W Mono Solar Panel

Get Latest Price

Delivery Time:: 7 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu, China (Mainland)

Product Description

270W Mono Solar Panel Typical Electrical Characteristics

Characteristics

RSM156M-270

RSM156M-280

RSM156M-290

RSM156M-300

RSM156M-310

Maximum power at STC (Pmax)

270Wp

280Wp

290Wp

300Wp

310Wp

Open-Circuit Voltage(Voc)

43.7V

44.0V

44.5V

45.0V

45.5V

Optimum Operating Voltage(Vmp)

35V

35.3V

35.6V

35.9V

36.3V

Short-Circuit Current (Isc)

8.4A

8.58A

8.80A

9.09A

9.20A

Optimum Operating Current(Imp)

7.72A

7.93A

8.14A

8.35A

8.53A

Module Efficiency

14.75%

15.25%

15.75%

16.50%

17.25%

Solar Cell Eficiency

15.50%

16.00%

16.50%

17.25%

18.00%

Operating Temperature

-40°C to + 85°C

Maximum System Voltage

1000V DC

Seriec Fuse Rating

20A

Power Tolerance

±1.5%

STC : Irradiance 1000W/m² , Module temperature 25°C,AM=1.5

Mechanical Characteristics Solar cell Mono -crystalline 156×156mm (6inch) No.of cells 72(6×12) Dimensions 1950×990×50mm Weight 28kg Front Glass 3.2mm tempered glass Frame Anodized aluminium alloy Junction Box PV-RH701 (TUV) Temperature Coefficents Temperature Coefficents Nominal Operating Cell Temperature (NOCT) 45±2°C Temperature Coefficent of Pmax -(0.47±0.05)%/°C Temperature Coefficent of Voc -(0.34±0.01)%/°C Temperature Coefficent of Isc -(0.055±0.01)%/°C WARRANTY Manufacturing 8years Power production 90% =12 years 80% =25 years
