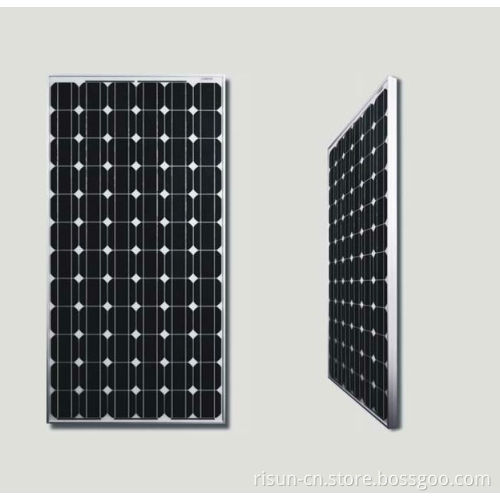

300W mono PV Solar panel with IEC,TUV,CE,CEC



Type		300W
		Mono-crystalline silicon
Maximum Power (Pmax)	W	175
Power Tolerance		±5%
Maximum Power voltage (Vmp)	V	35.27
Maximum Power current (Imp)	A	8.50
Open circuit voltage    (Voc)	V	45.22
Short circuit current    (Isc)	A	8.60
Size of module (Length and Width)		1950*990*50
Frame (type, material and thickness)		Anodized Alu. alloy frame, 46 mm thickness
Quantity of cells		72 pcs (6x12)
Cell Size		125 x 125 mm
Weight		15.0 Kg
Type of junction box		IP65
Cable type		2 PfG 1169, 4mm²
Maximum system voltage		1000V
Temperature coefficient of Isc		+0.05%/
Temperature coefficient of Voc		-0.34%/
Temperature coefficient of power		-0.5%/
NOCT (Nominal operating cell temperature)		47(+2)
Insulation		>=100MOhm
Voltage Standoff		AC2000V, DC3000V
Wind Bearing		60m/s(200kg/sq.m)
Impact Resistance Hail Impact Test		227g steel ball fall down from 1m height
Glass		high transmission, low iron, tempered glass 3.2 mm
Cell Efficiency		16.33%
Module Efficiency		13.71%

  Characteristics: 1) Manufactured according to international quality and Environment Management     System (ISO9001, ISO14001) 2) High efficiency crystalline silicon solar cells 3) High transmission Low iron tempered glass, strong mechanical resistance 4) Anti-ageing EVA and excellent anti-climate back sheet 5) Anodized aluminum frame improves load resistance capabilities for heavy wind loads. 6) Standard waterproof junction box 7) High endurance to different weather  8) Good and friendly package with less transportation and storage space. Warranty :  1)10 years limited manufacturing warranty 2)12 years for 90% of warranted minimum power 3)25 years for 80% of warranted minimum power     Product name: mono solar panel 300w   300M-72 mono solar panel 300w   1. Mono-Crystalline Module     2. Mono 156 cell, 72pcs      3. Power range 260Wp-310Wp               To Know More about mono solar panel 300w? Feel easy and free to Contact Us: 24 hours, 7 days at service through:  trade manager: cn1514612826ujvh , skype: huxiaoxia88,Wechat: 15162402520
