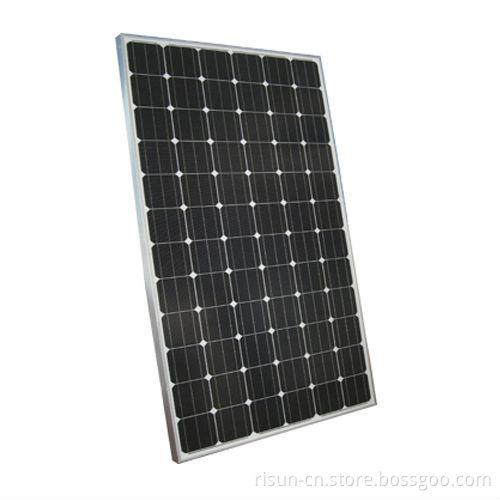

260W mono solar panel with TUV, CEC certificated

Specifications 260W Mono Solar Panel Specifications

1.Quality A

2.Offer OEM service

3.Efficiency is above 17%

4.CE certificate

    260W Mono Solar Panel, Solar Panel, Solar Module Tehnical Data

Electrical Data
MONO	RSM72-156M/260W
Nominal peak power(Pmax)	260Wp
Maximum power voltage(Vmp)	35.01V
Maximum power current(Imp)	7.43A
Short-circuit current(Isc)	8.04A
Open circuit voltage(Voc)	44.40V
Optimized cell efficiency(η)	18.00%
Power tolerance: ±3%
Limits
Operating temperature	-40°C to +85°C
Maximum system voltage	1000VDC
Temperature and Coefficients
NOCT	48°C±2°C
Current temperature coefficient	%/°C	0.037
Voltage temperature coefficient	%/°C	-0.34
Power temperature coefficient	%/°C	-0.48
NOCT:Nominal Operation Cell Temperature
Additional Data
Number of cells and type of connection	72,serial connection
Dimensions	1950*990*50
Net weight	26.0kgs/pc
Gross weight	623kgs/ctn(28pcs/ctn)   46kgs/ctn(2pcs/ctn)
STC: Irradiance of 1000W /m2, Air Mass of 1.5, Cell Temperature of 25°C
Guaranteed Power Output    Warranted Tolerance: ±5%	15 year:90% of its nominal power rating
	25 year:80% of its nominal power rating
Impact Resistance	Can bear the force that is generated by one 227g
	steel ball fall down from 1m height
Warranty period	10 years:Materials and workmanship defects
Certificates	CE,ISO,IEC61215&61730(TUV),UL1703/CSA,MCS
Cells	Monocrystalline silicon photovoltaic cell

   Advantages:   Lower price but constant good quality: 1. Excellent A grade solar cell from JA solar or our own lab; 2. Excellent backsheet from SFC, 3M; 3. EVA from Bridgestone; 4. Junction box with UL and TUV listed, IP65; 5. High transmission low iron tempered glass; 6. Solar panels with TUV, IEC, CE, ISO9001, ISO14001, CEC marked and ETL, MCS in processing;   7. Warranty:   (1)5years quality assurance resulted from design, material and workmanship; (2)Not less than 90% power output within 10years; (3)Not less than 80%power output within 25years; (4)Third-party insurance(Certificate Of Products Quality Warranty and Certificate Of Products Liability Insurance).                                 Any question please ask me feel free, and please add me Skype:betty.wang.0724
