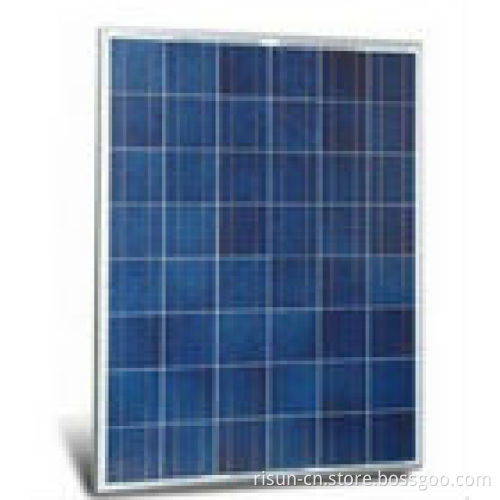

160W Poly Solar panel
- Delivery Time:
- 7 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Jiangsu, China (Mainland) |
|---|
Product Description
Product Description
160w poly solar panel Solar Module Specifications Poly 150W—180W
Things you may care: 1. What is the brand of this photovoltaic Solar panel? RISUN, we are the manufacturer of this panel, OEM service is available, as well as wholesale trade. 2. About the glass we use for the front of the panel: ---3.2mm tempered glass , light transmittance up to 95%.
3. Does it meet Europe Standards for Solar Energy ?
This is TUV approval products, all producing procedure strictly accords with TUV&UL.
4. What is the Efficiency level ?
--- Between 16-18.9% for solar cells. 5. Our trustworthy promises: a.Strict selection of appearance and electric performance before encapsulation
b.Excellent effect at low light level
c.High transparent tempered glass
d.High quality EVA and back film
e.Anodic oxidized aluminum frame and waterproof junction box
f.Unique process making panels nice-looking , rugged weather-resistant, g. A leak hole design against seeped icing and frame distortion
h. Super esay to install QUALITY WARRANTY AND SAFETY
90%/12years, 80%/25years
We have obtained the certification of
ISO9001:2000(Quality Management System)
and TUV,CE,UL,etc. We operate strictly
according to quality management system
and management procedures.
RECOMMENDED APPLICATION
Building Integrated Photovoltaic
Residential Rooftop System
Tracking System
On-Grid and Off-Grid Utility System
On-Grid and Off-Grid Commercial System FEATURES Strict selection of appearance and electric performance before encapsulation
Excellent effect at low light level
High transparent tempered glass
High quality EVA and back film,
anodic oxidized aluminum frame and
waterproof junction box
Unique process making panels
nice-looking , rugged weather-resistant,
and easy to install
A leak hole design against seeped icing
and frame distortion
QUALITY WARRANTY AND SAFETY
90%/12years, 80%/25years
We have obtained the certification of
ISO9001:2000(Quality Management System)
and TUV,CE,UL,etc. We operate strictly
according to quality management system
and management procedures.
RECOMMENDED APPLICATION
Building Integrated Photovoltaic
Residential Rooftop System
Tracking System
On-Grid and Off-Grid Utility System
On-Grid and Off-Grid Commercial System
| Module | Type (36 Series) | |||||
| Encapsulation | Glass/EVA/Cells/EVA/TPT | |||||
| Parameters | RSM48-156M/150W | RSM48-156M/160W | RSM48-156M/170W | RSM48-156M/180W | ||
| Max power | Pm(W) | 150W | 160W | 170W | 180W | |
Tolerance | +/-3% | |||||
| Open circuit voltage | Voc(V) | 29.2 | 29.3 | 29.4 | 29.5 | |
| Short circuit current | Isc(A) | 7.61 | 7.66 | 57.89 | 7.95 | |
| Max. power voltage | Vmp(V) | 23.1 | 23.1 | 23.4 | 23.5 | |
| Max. power current | Imp(A) | 6.53 | 6.96 | 7.28 | 7.66 | |
| Dimensions | (L*W*H) | 1326x990x40mm | ||||
| Net Weight | (kg) | 7.5 | ||||
| Max. system voltage | (V) | 1000VDC | ||||
| Operate Temp. Scope | -40/+85'C | |||||
| Resistance | 227g steel ball fall down from 1m height and 120m/s wind | |||||
| Warranty | Pm is no less 90% in 10 years and no less 80% in 25 years | |||||
| STC | (Standard Test Condition: 1000W/m2, AM1.5, and 25'C) | |||||
Things you may care: 1. What is the brand of this photovoltaic Solar panel? RISUN, we are the manufacturer of this panel, OEM service is available, as well as wholesale trade. 2. About the glass we use for the front of the panel: ---3.2mm tempered glass , light transmittance up to 95%.3. Does it meet Europe Standards for Solar Energy ?
This is TUV approval products, all producing procedure strictly accords with TUV&UL.
4. What is the Efficiency level ?
--- Between 16-18.9% for solar cells. 5. Our trustworthy promises: a.Strict selection of appearance and electric performance before encapsulation
b.Excellent effect at low light level
c.High transparent tempered glass
d.High quality EVA and back film
e.Anodic oxidized aluminum frame and waterproof junction box
f.Unique process making panels nice-looking , rugged weather-resistant, g. A leak hole design against seeped icing and frame distortion
h. Super esay to install QUALITY WARRANTY AND SAFETY
90%/12years, 80%/25years
We have obtained the certification of
ISO9001:2000(Quality Management System)
and TUV,CE,UL,etc. We operate strictly
according to quality management system
and management procedures.
RECOMMENDED APPLICATION
Building Integrated Photovoltaic
Residential Rooftop System
Tracking System
On-Grid and Off-Grid Utility System
On-Grid and Off-Grid Commercial System FEATURES Strict selection of appearance and electric performance before encapsulation
Excellent effect at low light level
High transparent tempered glass
High quality EVA and back film,
anodic oxidized aluminum frame and
waterproof junction box
Unique process making panels
nice-looking , rugged weather-resistant,
and easy to install
A leak hole design against seeped icing
and frame distortion
QUALITY WARRANTY AND SAFETY
90%/12years, 80%/25years
We have obtained the certification of
ISO9001:2000(Quality Management System)
and TUV,CE,UL,etc. We operate strictly
according to quality management system
and management procedures.
RECOMMENDED APPLICATION
Building Integrated Photovoltaic
Residential Rooftop System
Tracking System
On-Grid and Off-Grid Utility System
On-Grid and Off-Grid Commercial System
