200W Solar Module,High effeciency Mono Solar Module

Specifications 200W Mono Solar Module

1) high efficiency Solar module,good performance,good quality

2) 25years life span

3) TUV,ISO,CE

200W Mono Solar Module   1. Specification( 200W Mono Solar Module ):

Cells	Monocrystalline silicon solar cells 156x156mm
Number of cells	54(6×9)
Dimensions (mm)	1482*992*35
Weight (kg)	17

  2. Electrical Characteristics( 200W Mono Solar Module)

Values at Standard Test Conditions STC (Air Mass AM1.5, Irradiance 1000W/m², Cell Temperature 25°C)
Model	RSM-190		RSM -195		RSM - 200	RSM - 205	RSM- 210	RSM- 215
Max Power Pm(W)	190		195		200	205	210	215
Max Power Voltage Vm (V)	24.98		25.28		25.58	25.89	26.18	26.48
Max Power Current Im (A)	7.61		7.72		7.82	7.92	8.02	8.12
Open-Circuit Voltage Voc (V)	33.00		33.08		33.15	33.23	33.30	33.38
Short-Circuit Current Isc (A)	8.00		8.14		8.27	8.40	8.53	8.65
Cell Efficiency(%)	14.53		15.1		15.7	15.8	16.2	16.3
Module Efficiency(%)	12.92		13.26		13.6	13.94	14.28	14.62
Maximum System Voltage (V)	DC 1000(TUV) / DC 600(UL)
Power Tolerance(%)	0~+3
Series Fuse Rating (A)	15

  3.Components & Mechanical Data( 200W Mono Solar Module)

Front Glass	High Transparency Tempered Glass, 3.2mm
Junction Box	Pass the TUV Certificate PPO(black/IP65)
Output Cables	4mm2/0.9m
Connectors	MC4(UV resistance and self-locking/IP67)
Frame	Anodized aluminum alloy type 6063-T5
Encapsulation Material	EVA (0.50 ± 0.03mm thickness)
Back Foil	White TPT (0.32 ± 0.03mm thickness)
Fixing adhesive	Silicone Sealant(White)
Temperature Range(°C)	-40°C to +90°C
Max Load(Kpa)	2.4 wind load / 5.4 snow load
Temperature Range(°C)	-40°C to +90°C

   4. Temperature Coefficients ( 200W Mono Solar Module)

NOCT (°C)		47±2
Temperature Coefficient of Pm (%/°C)		-0.45±0.05
Temperature Coefficient of Isc (%/°C)		0.05±0.01
Temperature Coefficient of Voc (%/°C)		-0.34±0.02

  5. Packing ( 200W Mono Solar Module)

1*20'		360pcs / 6 pallets
1*40' GP		840pcs / 24 pallets

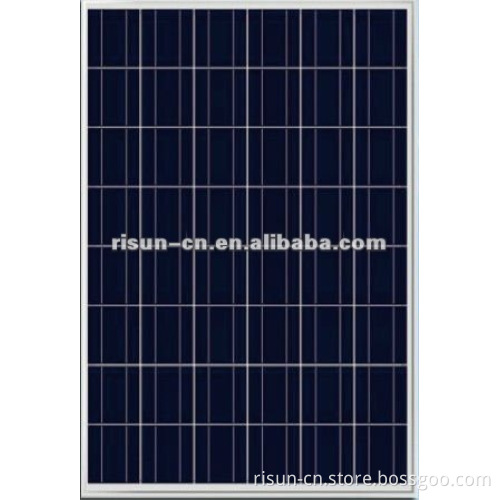

  Solar Panel Pictures show
