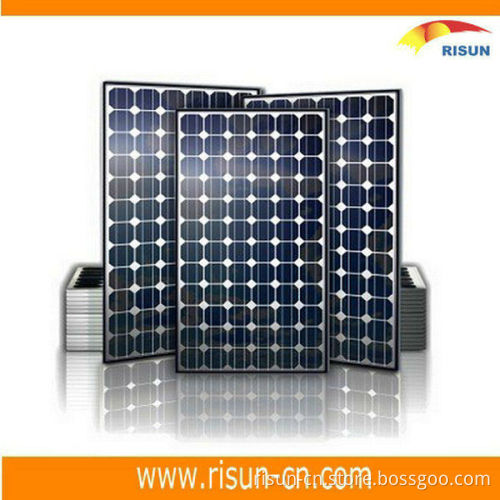

Risun Solar Module TUV CEC Fire Safety-class C

Specifications 250w mono crystalline solar module

1) high efficiency,good performance,good quality

2) 25years life span

3) TUV,CEC,CE,ISO

250W mono solar panel

Number of cells (Pcs)	60
Size of cell (mm)	156*156
Size of module (mm)	1650×990×45mm
Maximum system voltage (V)	1000V
Temperature coefficients of Isc (%)	+ 0.1/ °C
Temperature coefficients of Voc (%)	-0.38/ °C
Temperature coefficients of Pm (%)	-0.47/ °C
Temperature coefficients of Im (%)	+0.1/ °C
Temperature coefficients of Vm (%)	-0.38/ °C
Temperature Range	`-40C------+85C
Surface Maximum Load Capacity	60m/s(200kg/sq.m)
Allowable Hail Load	steel ball fall down from 1m height
Weight per piece (kg)	23.5
Junction Box Type	PV-JB001( TUV )
Connectors and Cables Type	With TUV certificate
Length of Cables (mm)	900mm
Output tolerance (%)	-0/+3%
Frame (Material, Corners, etc.)	Aluminum
Standard Test Conditions	1000W/m2 AM1.5 25’C
Warranty	5 years product warranty and 25years 80% of power
FF (%)	≥72%
Quantity of one 20ft container	350PCS
Quantity of one 40ft HQ container	806PCS

brief charactor   1.25 years warranty and long life span   2.power is not less than 90% in 10 years and not less than 80% in 20 years.   3.Local warehousing and techincal support   4.CE, ISO9001 certificate   5.High transmission tempered 3.2mm glass   6.good quality and competitive price.   7.high efficiency.       Features:   1.Solar panel power from 3w to 300w according to customers' requirement   2.Solar panel nominal 12/24v DC for standard ourput   3.Aesthetic appearance and rugged design to withstand high wind pressure, hail and snow load   4.Rigorous quality control to meeting the highest international standard   5.Solar panel encapsulated with high transmission low-iron, tempered glass   6. Cells are laminated with TPT and EVA ensuring longer life and maximum performance   7. TPT imported from Krempel, Germany, ensure 25 years output power more than 80%.   Material   1.Solar cell-conversion efficiency of solar cell: 24%-17%     2.Front glass-3.2mm, high transmission, low iron, tempered glass     3.EVA-excellent anti-aging resistance     4.TPT-hot seal made of flame resistance     5.Flame-reinfored anodixed aluminum flame     6.Junction box-Ip54 rated and Ip65 rated, high quality, with diode protection       Quality assurance testing     Thermal cycling test   Thermal shock test   Thermal/Freezing and high humidity cycling test   Electrical isolation test   Hail impact test   Mechanical, wind and twist loading test   Salt mist test   Light and water-exposure test   Moist carbon dioxide/sulphur dioxide     Solar Panel Pictures show             Factory Picture Show         Packing Picture Show             Certification Show Picture       Payment Safety       Payment term: 20% advanced as deposit by T/T or L/C, the rest payment paying after received B/L copy.       For Escrow payment, need 6 steps   1,you place the order on the page.   2,once we received your order information, we will make a contract via Alibaba(include price, quantity, manufactory necessary documents information).   3,Once you received contract, and if you are agree with the contract, you make the payment to Alibaba's bank account.   4, we prepare the cargos and shipping on time, providing B/L copy, insurance copy, test report, packing list, Invoice to you by E-mail.   5, give Alibaba a message for money release when you received all documents (B/L copy, insurance copy, test report, packing list, Invoice) .   6, we send the original B/L, insurance, test report, packing list, Invoice to you by express immediately.   7, Complete our business, you have rights complaint to Alibaba if something not satisfy your demand within 2 months, because we are Alibaba Assessed Supplier and Bureau Veritas verify company
