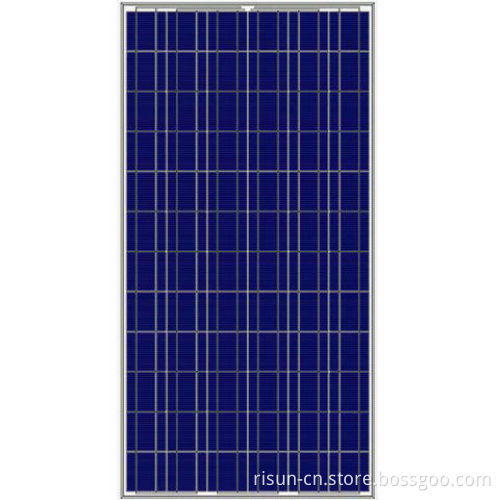

155W poly Solar module
- Delivery Time:
- 7 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Jiangsu, China (Mainland) |
|---|
Product Description
Product Description
Solar Module Specifications POLY 150W—180W
| Module | Type (36 Series) | |||||
| Encapsulation | Glass/EVA/Cells/EVA/TPT | |||||
| Parameters | RSM48-156M/150W | RSM48-156M/160W | RSM48-156M/170W | RSM48-156M/180W | ||
| Max power | Pm(W) | 155W | 160W | 170W | 180W | |
Tolerance | +/-3% | |||||
| Open circuit voltage | Voc(V) | 29.2 | 29.3 | 29.4 | 29.5 | |
| Short circuit current | Isc(A) | 7.61 | 7.66 | 57.89 | 7.95 | |
| Max. power voltage | Vmp(V) | 23.1 | 23.1 | 23.4 | 23.5 | |
| Max. power current | Imp(A) | 6.53 | 6.96 | 7.28 | 7.66 | |
| Dimensions | (L*W*H) | 1326x990x40mm | ||||
| Net Weight | (kg) | 7.5 | ||||
| Max. system voltage | (V) | 1000VDC | ||||
| Operate Temp. Scope | -40/+85'C | |||||
| Resistance | 227g steel ball fall down from 1m height and 120m/s wind | |||||
| Warranty | Pm is no less 90% in 10 years and no less 80% in 25 years | |||||
| STC | (Standard Test Condition: 1000W/m2, AM1.5, and 25'C) | |||||
