165W Poly Solar panel with high effciency
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Jiangsu, China (Mainland) |
|---|
1.Quality A
2.Offer OEM service
3.Efficiency is above 17%
4.CE certificate

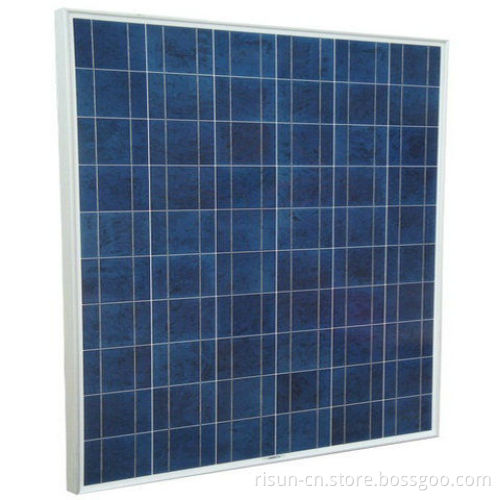

High Quality 165W Poly Solar panel ,solar module,solar panel
160W poly solar panel ELECTRICAL CHARACTERISTICS | |
Model | RSM36-156P/165W |
Maximum power (Pmax) | 165W |
Voltage at max. power (Vmp) | 23.1V |
Current at max. power (Imp) | 6.96A |
Open circuit voltage (Voc) | 29.3V |
Short circuit current (Isc) | 7.66A |
Temperature coefficient of Isc | (0.065±0.015)%/oC |
Temperature coefficient of Voc | -(160±20)mV/oC |
Temperature coefficient of power | -(0.45±0.05)%/oC |
Operating temperature | -40/+85oC |
Package | |
Package | Carton,pallet |
Warranty | Pmax is not less than 90% in 10 years and 80% in 25 years. |
MECHANICAL CHARACTERISTICS | |
Cell size (mm) | 156x156 polycrystalline solar cells |
Cell array | as requirment. |
Dimensions (mm) | 1326*990*40 |
Weight(Kg) | 16.5 |
Frame | Clear anodized aluminum alloy type universal frame; |
Construction | Front: High-transmission 3.2mm tempered glass; Back: Black Polyester; Encapsulant: EVA Junction Box: pass TUV Output cable: 900mm |
Any question please ask me feel free, and please add me Skype:betty.wang.0724
