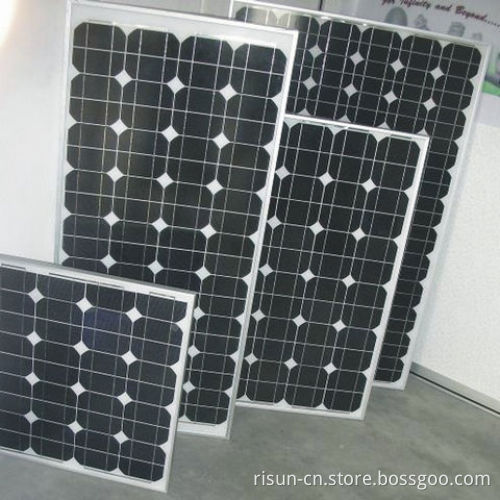

140W mono solar panel,China professional Solar PV Modules manufacturer
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Jiangsu, China (Mainland) |
|---|
Product Description
Product Description
Specifications 140W Mono Solar Panel Specification:
1.Quality A
2.Offer OEM service
3.Efficiency is above 17%
4.CE certificate
Feel free to contact with me online, my skype is betty.wang.0724
1.Quality A
2.Offer OEM service
3.Efficiency is above 17%
4.CE certificate
140W Mono Solarpanel Mechanical Characteristics |
|
Model | RSM54-125M/140W |
Solar cell | Mono |
Number of cells (pcs) | 54 |
Size of module (mm) | 1200*808*35 |
Front Glass | 3.2 mm tempered glass |
Surface Maximum Load Capacity | 60m/s (200kgs/sq. m) |
Allowable Hail Load | steel ball fall down from 1M height |
Frame | Anodized aluminium alloy |
Junction Box Type | IP65 rated |
Connectors | MC Plug Type IV connectors |
Cables | 4.0 mm² , 900mm |
Temperature Coefficients |
|
Nominal Operating Cell Temperature | 45 ± 2º C |
Temperature Coefficients of Voc (%) | β -2.2mV/º C |
Temperature Coefficients of Pm (%) | γ -0.55%/º C |
Temperature Coefficients of Im (%) | α 0.03%/º C |
Temperature Coefficients of Vm (%) | β -2.2mV/ º C |
Feel free to contact with me online, my skype is betty.wang.0724
