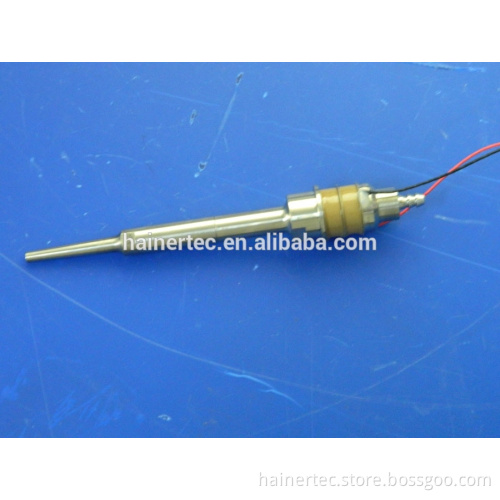

Ultrasonic debridement of medical debridement transducer

Product Description   The ultrasonic atomization debridement device using ultrasonic frequency vibration, and will break up the liquid into mist

  The ultrasonic atomization debridement device is the use of high-frequency ultrasonic vibration, the formation of tiny particles of several μm to 100 μm size, and will break up the liquid into mist, to the role of wound debridement, humidification, sterilization and other. This equipment consists of two parts, divided into ultrasonic debridement of the tool head and the ultrasonic drive power. Ultrasonic drive power to the ordinary city was transformed debridement tool head for the high frequency electrical signal input, the tool head with high-performance ultrasonic transducers, high-frequency electrical signal is converted into high frequency mechanical vibrations, by the end output. When the solution flows through the end, the high-frequency ultrasound scatters become mist and achieve the results. Features:

The device is easy to use, high atomization efficiency, suitable for a variety of solution, the corrosion resistance. No moving parts, low energy consumption devices are small, easy to carry.   Related Products

Type	Frequency	Capacitance	Impedance	Power	Insulation impedance
	(KHz)	(pF)	(Ω)	(W)	(2500VDC)
HNM-8SE-1640(3×4)	40 kHz±2.0kHz	3300pF±10%	Zr ≤120Ω	30	100MΩ
HNT-8SE-1840(6*2)	40±2.0KHz	800±10%	Zr ≤120Ω	25	100MΩ
