20 khz price ultrasonic welding machine

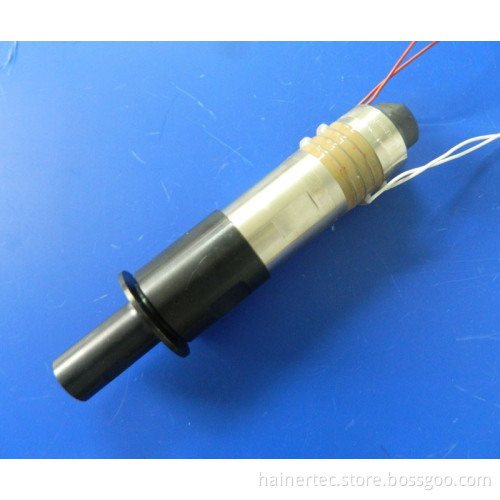

  Product Description  Ultrasonic transducer for Ultrasonic welding machine ,such as plastic welding machine or metal welding machine

Model	Resonant Frequency	Static   Capacitance	Resonant Impedance	Power(W)	Insulation Impedance
	(KHz)	(pF)	(Ω)		(2500VDC)
HNT-8SS-5020(6.5X4)	20.0±0.4	9600±10%	≤15Ω	1000	100MΩ
HNT-8AS-5020(7X4)	20.0±0.4	9000±10%	≤15Ω	1000	100MΩ

    Related Products

Model	Resonant Frequency	Static   Capacitance	Resonant Impedance	Power(W)	Insulation Impedance
	(KHz)	(pF)	(Ω)		(2500VDC)
HNT-4AS-6015(10X4)	15.0±0.4	10800±10%	≤12Ω	1500	100MΩ
HNT-4AE-6515(10X4)	15.0±0.4	10800±10%	≤12Ω	1500	100MΩ
HNT-8AS-6015(10X4)	15.0±0.4	7800±10%	≤12Ω	1500	100MΩ
HNT-8AE-6515(10X4)	15.0±0.4	7800±10%	≤12Ω	1500	100MΩ
HNT-4AE-4020(5X4)	20.0±0.4	2950±10%	≤25Ω	200	100MΩ
HNT-4AE-4020(5X6)	20.0±0.4	2950±10%	≤25Ω	200	100MΩ
HNT-4AE-5020(7X4)	20.0±0.4	12500±10%	≤15Ω	1200	100MΩ
HNT-4AS-5020(6X4)	20.0±0.4	12500±10%	≤15Ω	1200	100MΩ
HNT-4AS-5020(7X4)	20.0±0.4	12500±10%	≤15Ω	1200	100MΩ
HNT-8AE-4020(5X4)	20.0±0.4	9500±10%	≤25Ω	350	100MΩ
HNT-8AE-4020(5X6)	20.0±0.4	13800±10%	≤18Ω	500	100MΩ
HNT-8AE-4520(5X4)	20.0±0.4	12000±10%	≤22Ω	600	100MΩ
HNT-8AE-4520(5X6)	20.0±0.4	18000±10%	≤18Ω	800	100MΩ
HNT-8SS-5020(6.5X4)	20.0±0.4	9600±10%	≤15Ω	1000	100MΩ
HNT-8AS-5020(7X4)	20.0±0.4	9000±10%	≤15Ω	1000	100MΩ
HNT-8SS-5024(5X4)	24.0±0.4	6200±10%	≤20Ω	800	100MΩ
HNT-8AE-2040(5X2)	40.0±0.4	1350±10%	≤30Ω	120	100MΩ
HNT-8AE-2528(5X4)	28.0±0.4	1350±10%	≤30Ω	120	100MΩ
HNT-8AE-2535(5X2)	35.0±0.4	1350±10%	≤30Ω	120	100MΩ
HNT-8SS-3030(5X4)	30.0±0.4	1350±10%	≤30Ω	120	100MΩ
HNT-8SE-3040(5X2)	40.0±0.4	1350±10%	≤30Ω	120	100MΩ
HNT-8SE-3050(5X2)	50.0±0.4	1350±10%	≤30Ω	120	100MΩ
HNT-8AE-3230(6X2)	30.0±0.4	1350±10%	≤30Ω	120	100MΩ
HNT-8SS-3230(5X4)	30.0±0.4	1350±10%	≤30Ω	120	100MΩ
HNT-8SE-3535(5X4)	35.0±0.4	3600±10%	≤22Ω	350	100MΩ
HNT-8SE-3540(5X4)	40.0±0.4	3600±10%	≤22Ω	350	100MΩ
HNT-8SE-3840(5X4)	40.0±0.4	4800±10%	≤18Ω	500	100MΩ
HNT-8AE-2040(5X2)	40.0±0.4	1350±10%	≤30Ω	120	100MΩ
