Ultrasonic transducer for Screen ultrasonic vibrating screen

  Product Description   Screening is used in many different areas such as e.g. in the food, pharmaceutical, chemical, metal powder or synthetic industry etc. With ultrasonics, it is possible to improve screening for all these fields. Already existing screening machines, not just round but also rectangular shaped, can be easily retrofitted by using our ultrasonic components.

Type	Frequency (KHz)	Capacitance (pF)	Impedance (Ω)	Power(W)	Size(mm) Sheld Diameter*Height	Notes
HNT-8SH-4533 (5*2)-B	33±2.0	6800±10%	≤10Ω	80	Ø65×85	Bottom vibration series
HNT-8SH-3833 (5*2)-B	33±2.0	4800±10%	≤10Ω	60	Ø58×85
HNT-8SH-3535 (5*2)-B	35±2.0	4500±10%	≤10Ω	50	Ø55×80
HNT-8SE-4530 (5*2)-S	31±2.0	6800±10%	≤10Ω	80	Ø65×130	Side vibration series
HNT-8SE-3833 (5*2)-S	33±2.0	4500±10%	≤10Ω	60	Ø58×130
HNT-8SE-3535(5*2)-S	35±2.0	4000±10%	≤10Ω	50	Ø55×120
HNT-8SE-3030(4*4-S	31±2.0	9000±10%	≤10Ω	120	Ø55×120
HNT-8SE-2535 (4*4)-S	35±2.0	5500±10%	≤10Ω	50	Ø43×160	Handheld clear mesh series
HNT-8AE-2535(5*2)-S	35±2.0	3500±10%	≤10Ω	30	Ø42×133
HNT-8SE-3535(5*2)-S	35±2.0	4000±10%	≤10Ω	50	Ø55×120
HNT-8SS-1540(2.5*2)-D	40±2.0	1600±10%	≤10Ω	15	Ø28×95	Touch clear mesh series

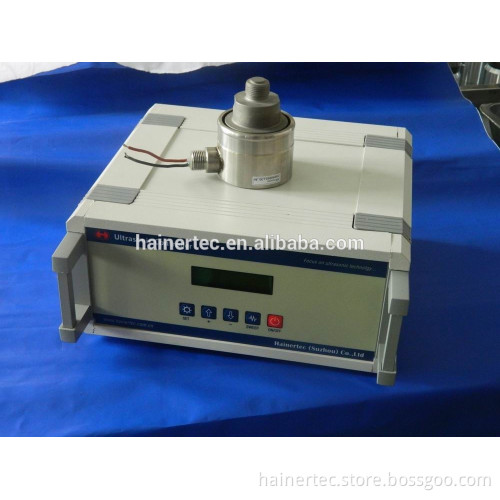

    Detailed Images
