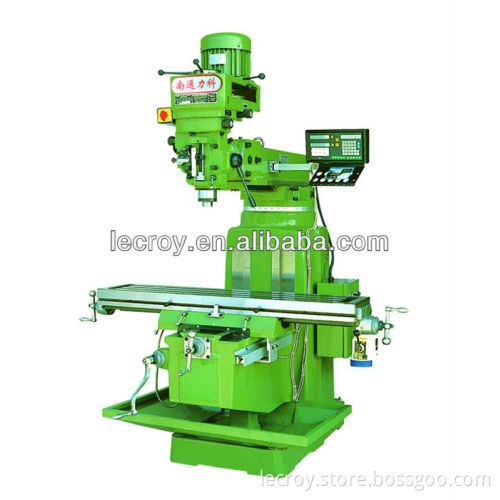

Roker universal milling machine

Specifications 1.Easy operate/low noise / variable speed

2.High rigidity and stability casting body

3.Perfect lubricate system

4.ISO9001

PRODUCT NAME:Roker universal milling machine   SPECIFICATIONS:

Item	Units	X6332
Table size	mm	320x1670
No.of T-slots		3
Width of T-slots	mm	14
Distance between T-slots	mm	80
spindle taper		Nt40
Longitudinal travel(manual/auto)	mm	1080
Cross travel(manual/auto)	mm	410
Vertical travel(manual/auto)	mm	460
Max.drilling dia.	mm	28
Max.horizontal milling dia.	mm	100
Max.tapping dia.	mm	15
main spindle bore dia.	mm	17
spindle travel	mm	127
distance frpm spindle nose to table surface	mm	100~500
distance from centre line of spindle to vertical guideway surface	mm	140-620
No.of feeds	steps	16
spindle feed rate	mm	0.04/0.08/0.15
Spindle speed range	rpm	80~5440
max.swivel angle of milling head( longitudinal /cross)	-	±90°/±45°
motor of milling head	kw	3.75
coolant pump motor	w	90
hight of the machine	mm	2350
floor space(L X W)	mm	2010X820
weight of the machine	kg	2000
guideway of the machine body		rectangle
power of feed motor	kw	0.2

  STANDARD ACCESSORIES: drawbar,one set of R8 collet, wrenches,oil gun,slot type screwdriver,cross head  screwdriver   OPTIONAL ACCESSORIES(charge separately): deviding head, DRO(for two axis or three axis), machine vise,rotary table,power feed,etc.   WHY CHOOSE US?   We are the MANUFACTURER of high quality milling machine with competitive price!   Such as vertical milling machine X5040/X5032, universal horizontal milling machine  X6140/X6132,radial milling machine X6330, cnc milling machine,etc.   The  sales performance, satisfied accessories,longtime work team experience, stability & durability of the machines are our best selling points!

Company Brief Nantong Lecroy Machine Tool Manufacturing Co,.Ltd specializes in machine tool research and development, design, manufacturer and sales. We have a long history to produce precision machine tool.
Assembly shop of vertical machining center   We follow strict assembly technique after we check each parts are eligible.
Assembly shop
Warehouse
Casting
The main parts   gear
