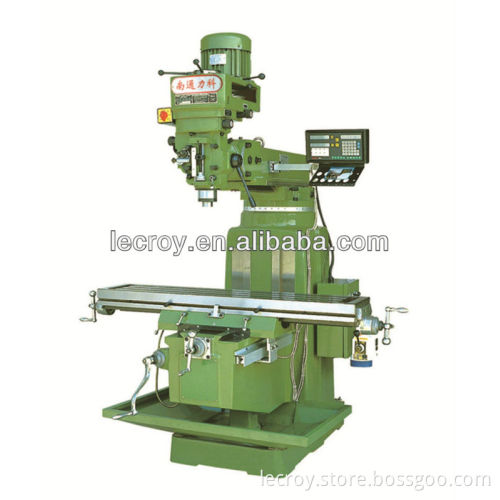

XJ6330A universal radial milling machine

Specifications 1.Easy operate/low noise / variable speed

2.High rigidity and stability casting body

3.Perfect lubricate system

4.ISO9001

PRODUCT NAME:XJ6330A universal radial milling machine   SPECIFICATIONS:

Item	Units	X6330A
Table size	mm	300x1370
No.of T-slots		3
Width of T-slots	mm	14
Distance between T-slots	mm	80
spindle taper		R8
Longitudinal travel(manual/auto)	mm	900
Cross travel(manual/auto)	mm	420
Vertical travel(manual/auto)	mm	460
main spindle bore dia.	mm	13
spindle travel	mm	127
distance frpm spindle nose to table surface	mm	100~500
distance from centre line of spindle to vertical guideway surface	mm	140-520
No.of feeds	steps	16
spindle feed rate	mm	0.04/0.08/0.15
Spindle speed range	rpm	80~5440
max.swivel angle of milling head( longitudinal /cross)	-	±90°/±45°
motor of milling head	kw	2.2
coolant pump motor	w	40
Overall dimensions(LxWxL)	mm	1780x1480x2250
weight of the machine	kg	1600
guideway of the machine body		dovetail
power of feed motor	kw	0.2

  STANDARD ACCESSORIES: drawbar,one set of R8 collet, wrenches,oil gun,slot type screwdriver,cross head  screwdriver   OPTIONAL ACCESSORIES(charge separately): deviding head, DRO(for two axis or three axis), machine vise,rotary table,power feed,etc.   WHY CHOOSE US?   We are the MANUFACTURER of high quality milling machine with competitive price!   Such as vertical milling machine X5040/X5032, universal horizontal milling machine  X6140/X6132,radial milling machine X6330, cnc milling machine,etc.   The  sales performance, satisfied accessories,longtime work team experience, stability & durability of the machines are our best selling points!

Company Brief Nantong Lecroy Machine Tool Manufacturing Co,.Ltd specializes in machine tool research and development, design, manufacturer and sales. We have a long history to produce precision machine tool.
Assembly shop of vertical machining center   We follow strict assembly technique after we check each parts are eligible.
Assembly shop
Warehouse
Casting
The main parts   gear
