X5032 vertical milling machine

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu, China (Mainland)

Product Description

Specifications 1.Easy operation and high stability.

2.These machines are widely suited for flat surfaces.

3. Milling machine IS09001

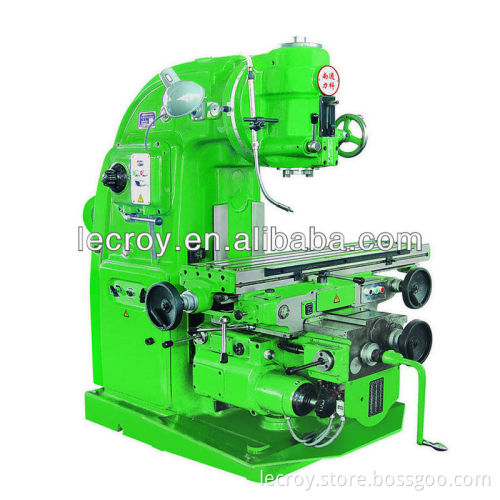

	Vertical Knee-Type Milling Machine X5032

Vertical Knee-Type Milling Machine X5032

	Units	X5032
Table size	mm	1325x320
No.of T-slots		3
Width of T-slots	mm	18
Max load	kg	500
Longitudinal travel(manual/auto)	mm	700/680
Cross travel(manual/auto)	mm	255/240
Vertical travel(manual/auto)	mm	370/350
Rapid feed speed	mm/min	X:2300,Y:2300,Z:770
Spindle speed range	r/min	30-1500
Spindle speed step	steps	18
Spindle travel	mm	85
Max.swivel angle of spindle		±45
Distance between spindle nose and table surface	mm	45/415
Power of spindle motor	kw	7.5
Overall dimensions(LxWxH)	mm	2295X1770X2094
Net weight	kg	2800

Company Brief Nantong Lecroy Machine Tool Manufacturing Co,.Ltd specializes in machine tool research and development, design, manufacturer and sales. We have a long history to produce precision machine tool.
Assembly shop of vertical machining center We follow strict assembly technique after we check each parts are eligible.
Assembly shop
Warehouse
Casting
The main parts gear
