vertical mill drill machine

Specifications 1.Easy operation

2.These machines are widely suited for flat surfaces.

3. Milling machine IS09001

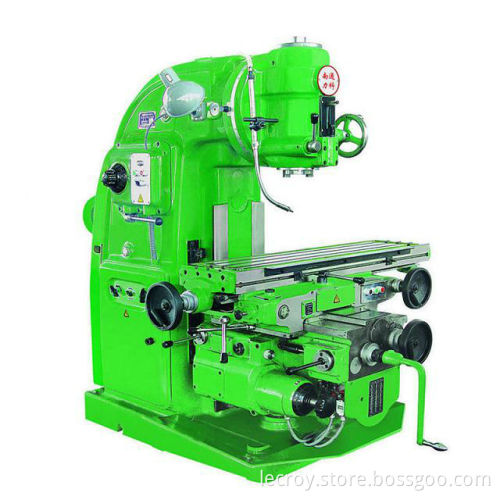

PRODUCT NAME:Vertical Knee-Type Milling Machine X5032   SPECIFICATIONS:

	Units	X5032
Table size	mm	1325x320
No.of T-slots		3
Width of T-slots	mm	18
Max load	kg	500
Longitudinal travel(manual/auto)	mm	700/680
Cross travel(manual/auto)	mm	255/240
Vertical travel(manual/auto)	mm	370/350
Rapid feed speed	mm/min	X:2300,Y:2300,Z:770
Spindle speed range	r/min	30-1500
Spindle speed step	steps	18
Spindle travel	mm	85
Max.swivel angle of spindle		±45
Distance between spindle nose and table surface	mm	45/415
Power of spindle motor	kw	7.5
Overall dimensions(LxWxH)	mm	2295X1770X2094
Net weight	kg	2800

    STANDARD ACCESSORIES: wrenches,drawbar,sleeves,morse taper intermediate sleeve,  foundation bolts ,nuts, washers,oil gun, lump ,springs, brush core     OPTIONAL ACCESSORIES(charge separately): deviding head, DRO(for two axis or three axis), machine vise,rotary table,milling chuck,boring cutter holder, facing cutter,vertical mill cutter,etc.     WHY CHOOSE US?   We are the MANUFACTURER of high quality milling machine with competitive price!   Such as vertical milling machine X5040/X5032, universal horizontal milling machine  X6140/X6132,radial milling machine X6330, etc.   The  sales performance, satisfied accessories,longtime work team experience, stability & durability of the machines are our best selling points!

Company Brief Nantong Lecroy Machine Tool Manufacturing Co,.Ltd specializes in machine tool research and development, design, manufacturer and sales. We have a long history to produce precision machine tool.
Assembly shop of vertical machining center   We follow strict assembly technique after we check each parts are eligible.
Assembly shop
Warehouse
Casting
The main parts   gear
