knee-type conventional cheap milling machine

Specifications 1. Milling Machine with good quality

2,Milling machine Table sizes:1700X400

3, Milling machine IS09001

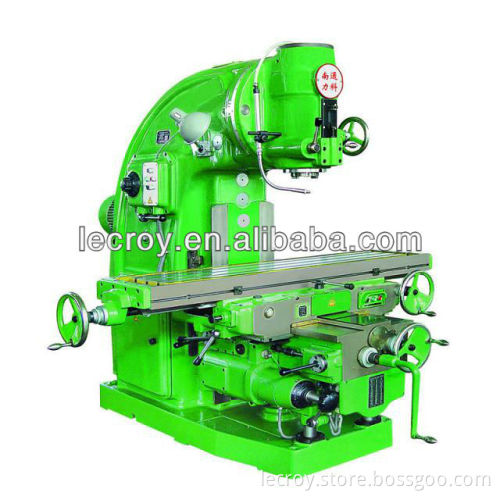

PRODUCT NAME:Vertical Knee-Type Milling Machine X5040   SPECIFICATIONS:

	Units	X5040
Table size	mm	1700x400
No.of T-slots		3
Width of T-slots	mm	18
Max load	kg	800
Longitudinal travel(manual/auto)	mm	900/880
Cross travel(manual/auto)	mm	315/300
Vertical travel(manual/auto)	mm	385/365
Rapid feed speed	mm/min	X:2300,Y:1540,Z:770
Spindle speed range	r/min	30-1500
Spindle speed step	steps	18
Spindle travel	mm	85
Max.swivel angle of spindle		±45
Distance between spindle nose and table surface	mm	30/500
Power of spindle motor	kw	11
Overall dimensions(LxWxH)	mm	2556X2159X2298
Net weight	kg	4250

  STANDARD ACCESSORIES: wrenches,drawbar,sleeves, morse taper intermediate sleeve, foundation bolts ,nuts, washers,oil gun, lump ,spring,brush core,end mill arbor,spanner for end mill cutter arbor     OPTIONAL ACCESSORIES(charge separately): deviding head, DRO(for two axis or three axis), machine vise,rotary table,milling chuck,boring cutter holder, facing cutter,vertical mill cutter,etc.   WHY CHOOSE US?   We are the MANUFACTURER of high quality milling machine with competitive price!   Such as vertical milling machine X5040/X5032, universal horizontal milling machine  X6140/X6132,radial milling machine X6330, etc.   The  sales performance, satisfied accessories,longtime work team experience, stability & durability of the machines are our best selling points!

Company Brief Nantong Lecroy Machine Tool Manufacturing Co,.Ltd specializes in machine tool research and development, design, manufacturer and sales. We have a long history to produce precision machine tool.
Assembly shop of vertical machining center   We follow strict assembly technique after we check each parts are eligible.
Assembly shop
Warehouse
Casting
The main parts   gear
