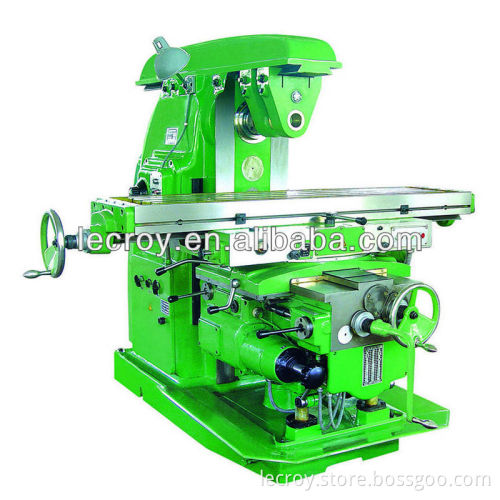

horizontal knee-type milling machine X63W

Units

X63W

Table size

mm

1700x400

No.of T-slots

3

Width of T-slots

mm

18

Max load

kg

500

Longitudinal travel(manual/auto)

mm

900/880

Cross travel(manual/auto)

mm

315/300

Vertical travel(manual/auto)

mm

380/360

Rapid feed speed

mm/min

X:2300,Y:2300,Z:770

Spindle speed range

r/min

30-1500

Spindle speed step

steps

18

Max.swivel angle of spindle

±45

Distance between spindle nose and table surface

mm

30/410

Power of spindle motor

kw

11

Overall dimensions(LxWxH)

mm

2556X2159X1830

Net weight

kg

3850

Company Brief

Nantong Lecroy Machine Tool Manufacturing Co,.Ltd specializes in machine tool research and development, design, manufacturer and sales. We have a long history to produce precision machine tool.



Assembly shop of vertical machining center

  We follow strict assembly technique after we check each parts are eligible.
