X62K universal knee-type milling machine

Units

X6132

Table size

mm

1325x320

No.of T-slots

3

Width of T-slots

mm

18

Max load

kg

500

Longitudinal travel(manual/auto)

mm

700/680

Cross travel(manual/auto)

mm

245/230

Vertical travel(manual/auto)

mm

320/300

Rapid feed speed

mm/min

X:2300,Y:2300,Z:770

Spindle speed range

r/min

30-1500

Spindle speed step

steps

18

Max.swivel angle of spindle

±45

Distance between spindle nose and table surface

mm

30/350

Power of spindle motor

kw

7.5

Overall dimensions(LxWxH)

mm

2294X1770X1665

Net weight

kg

2850

Company Brief

Nantong Lecroy Machine Tool Manufacturing Co,.Ltd specializes in machine tool research and development, design, manufacturer and sales. We have a long history to produce precision machine tool.



Assembly shop of vertical machining center

  We follow strict assembly technique after we check each parts are eligible.

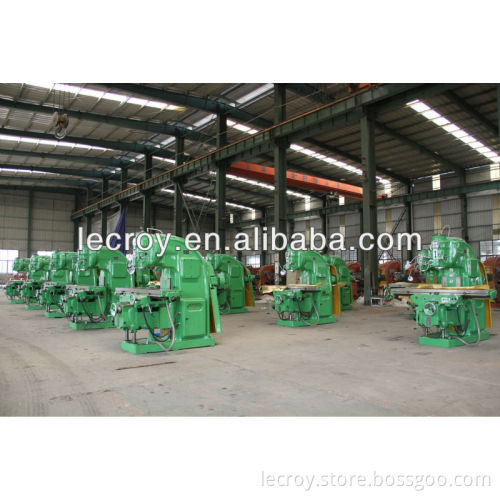

Assembly shop

 Warehouse

Casting

 The main parts

  gear
