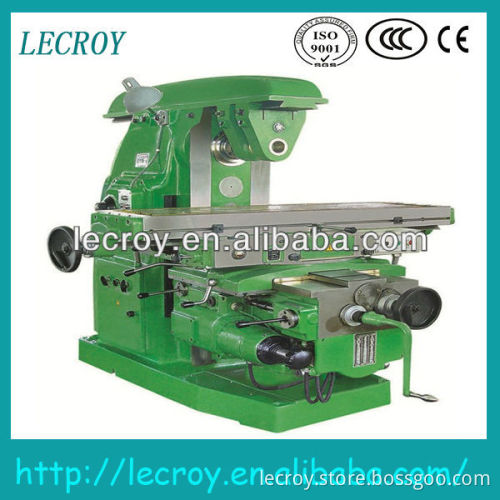

X6132 universal knee type milling machine

X6132 universal knee type milling machine

Get Latest Price

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu, China (Mainland)

Product Description

Specifications 1.SIMENS feed motor

2.Low noise / variable speed

3.High rigidity and stability casting body

4.Perfect lubricate system

PRODUCT NAME:X6132 universal knee type milling machine SPECIFICATIONS:

Item		Units	X6132
Table	Table size	mm	320*1325/1600
	No.of T-slots		3
	Width of T-slots	mm	18
	Max load	kg	500
	Distance between T-slots	mm	70
Travel	Longitudinal travel(manual/auto)	mm	700/680,980/960
	Cross travel(manual/auto)	mm	245/230
	Vertical travel(manual/auto)	mm	320/300
Spindle	Spindle taper		7:24(ISO NO.50)
	Spindle bore diameter	mm	29
	Spindle speed range	r/min	30-1500
	Spindle speed step	steps	18
	Axial mootion	mm	85
	Max.swivel angle of spindle		±45
	Distance from spindle nose to table surface min/max.	mm	215/470
	Distance from centre line of spindle to vertical guideway surface of column	mm	30/350
Feedrate	Cutting feed rate	mm/min	X:23.5-1180,Y:15-786,Z:8-394
	Rapid feed rate	mm/min	X:2300,Y:2300,Z:770
	NO. of feed	mm	18
Motor	Power of spindle motor	kw	7.5
Motor	Power of feed motor	kw	2.2
Others	Overall dimensions(LxWxH)	mm	2294X1170X1665
Others	Net weight	kg	2850

STANDARD ACCESSORIES: Wrenches/spanners,drawbar,foundation bolts ,nuts,washers,oil gun, lump ,mill cutter arbor OPTIONAL ACCESSORIES(charge separately): deviding head, DRO(for two axis or three axis), machine vise,rotary table(TS400),mill chuck,boring cutter holder, facing cutter,vertical mill cutter,vertical milling head,etc. WHY CHOOSE US? We are the MANUFACTURER of high quality milling machine with competitive price! Such as vertical milling machine X5040/X5032, universal horizontal milling machine X6140/X6132,radial milling machine X6330, etc. The sales performance, satisfied accessories,longtime work team experience, stability & durability of the machines are our best selling points!

Company Brief Nantong Lecroy Machine Tool Manufacturing Co,.Ltd specializes in machine tool research and development, design, manufacturer and sales. We have a long history to produce precision machine tool.
Assembly shop of vertical machining center We follow strict assembly technique after we check each parts are eligible.
Assembly shop
Warehouse
Casting
The main parts gear
