hotsale high quality cnc machinery milling machine excellent quality

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu, China (Mainland)

Product Description

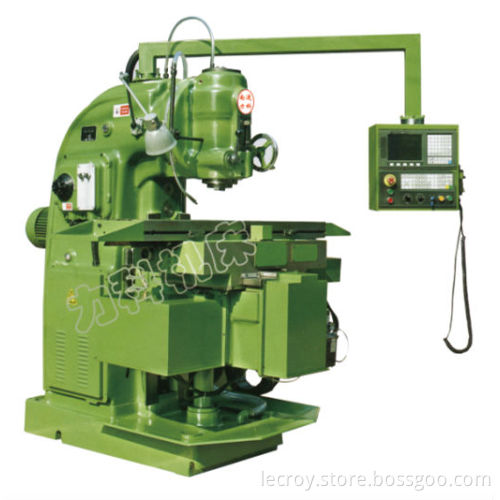

hotsale high quality cnc machinery

	Units	XK5032
Table size	mm	320x1325
No.of T-slots		3
Width of T-slots	mm	18
Max load	kg	500
Longitudinal travel(manual/auto)	mm	700
Cross travel(manual/auto)	mm	250
Vertical travel(manual/auto)	mm	360
Position accuracy of worktable	mm	0.035
Repeat position accuracy of worktable	mm	0.025
Spindle taper		7:24(ISO NO.50)
Spindle bore diameter	mm	29
Spindle travel	mm	85
Max. angle of vertical milling head	deg	±45
Distance between spindle nose and table surface(Min./Max.)	mm	45/415
Distance from vertical guidway to spindle centerline	mm	350
Distance from vertical guidway to center of T-slot in center worktable center	mm	215/470
Spindle speed range	r/min	30-1500
Spindle speed step	steps	18
Feed rate of axis x	mm/min	6-3500
Feed rate of axis y	mm/min	6-3500
Feed rate of axis z	mm/min	6-1200
Power capacity	KVA	23
Power of main motor	KW	7.5
Main motor rotate speed	r/min	1450
Longitudinal feed motor torque	Nm	10
Transverse feed motor torque	Nm	10
Vertical feed motor torque	Nm	15
Power of coolant pump motor	KW	0.125
Rotate speed of coolant pump motor	r/min	2790
Overall dimensions(LxWxH)	mm	2272X1970X2094
Net weight	kg	2800
Dimentions of control cabinet(LxWxH)	mm	450X420X1200
Dimentions of maneuvering box(LxWxH)	mm	450X420X280
Weight of maneuvering box	kg	30

Company Brief Nantong Lecroy Machine Tool Manufacturing Co,.Ltd specializes in machine tool research and development, design, manufacturer and sales. We have a long history to produce precision machine tool.
Assembly shop of vertical machining center We follow strict assembly technique after we check each parts are eligible.
Assembly shop Strict quality management. Professional QC to ensure accuracy.
Warehouse
Casting
The main parts gear
