high precise CNC machine XK5040

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu, China (Mainland)

Product Description

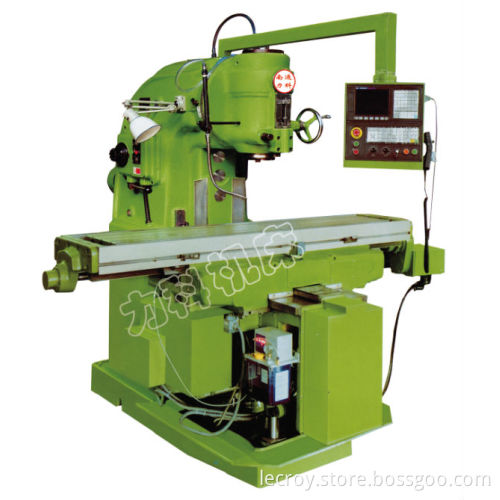

CNC Knee-type Vertical Milling Machine XK5040

	Units	XK5040
Table size	mm	400x1700
No.of T-slots		3
Width of T-slots	mm	18
Max load	kg	800
Longitudinal travel(manual/auto)	mm	900
Cross travel(manual/auto)	mm	315
Vertical travel(manual/auto)	mm	385
Position accuracy of worktable	mm	0.035
Repeat position accuracy of worktable	mm	0.025
Spindle taper		7:24(ISO NO.50)
Spindle bore diameter	mm	29
Spindle travel	mm	85
Max. angle of vertical milling head	deg	±45
Distance between spindle nose and table surface(Min./Max.)	mm	30/500
Distance from vertical guidway to spindle centerline	mm	450
Spindle speed range	r/min	30-1500
Spindle speed step	steps	18
Feed rate of axis x	mm/min	6-3500
Feed rate of axis y	mm/min	6-3500
Feed rate of axis z	mm/min	6-1800
Power capacity	KVA	25
Power of main motor	KW	11
Main motor rotate speed	r/min	1450
Longitudinal feed motor power	KW	1.6
Transverse feed motor power	KW	1.6
Vertical feed motor power	KW	4.5
Power of coolant pump motor	KW	0.125
coolant pump output flow	L/min	18
Power source requirement		380V+10%,50HZ+1HZ
Overall dimensions(LxWxH)	mm	2600X2600X2400
Net weight	kg	4250
Dimentions of control cabinet(LxWxH)	mm	450X420X1200
Dimentions of maneuvering box(LxWxH)	mm	450X420X280
Weight of maneuvering box	kg	30

Company Brief Nantong Lecroy Machine Tool Manufacturing Co,.Ltd specializes in machine tool research and development, design, manufacturer and sales. We have a long history to produce precision machine tool.
Assembly shop of vertical machining center We follow strict assembly technique after we check each parts are eligible.
Assembly shop Strict quality management. Professional QC to ensure accuracy.
Warehouse
Casting
The main parts gear
