knee type horizontal CNC machine

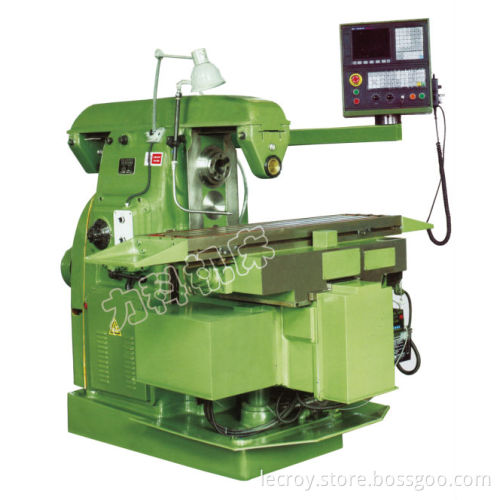

  CNC Knee-type Horizontal Milling Machine XK6132

	Units	XK6132
Table size	mm	320x1325
No.of T-slots		3
Width of T-slots	mm	18
Max load	kg	500
Longitudinal travel(manual/auto)	mm	700
Cross travel(manual/auto)	mm	225
Vertical travel(manual/auto)	mm	320
Position accuracy of worktable	mm	0.035
Repeat position accuracy of worktable	mm	0.025
Spindle taper		7:24(ISO NO.50)
Spindle bore diameter	mm	29
Distance from spindle axis to worktable surface	mm	30-350
Distance from spindle axis to bottom of overarm	mm	155
Distance from vertical guideway to T-slot center on worktable center	mm	215-470
Spindle speed range	r/min	30-1500
Spindle speed step	r/min	18
Feed rate of axis x	mm/min	6-3500
Feed rate of axis y	mm/min	6-3500
Feed rate of axis z	mm/min	6-1800
Power capacity	KVA	2.3
Power of main motor	KW	7.5
Main motor rotate speed	r/min	1440
Longitudinal feed motor torque	Nm	10
Transverse feed motor torque	Nm	10
Vertical feed motor torque	Nm	15
Power of coolant pump motor	Nm	0.125
Coolant pump output flow	L/min	18
Power supply		380v+10%, 50HZ+1HZ
Overall dimensions(LxWxH)	mm	2273X1770X1655
Net weight	kg	2850
Dimentions of control cabinet(LxWxH)	mm	450X420X1200
Dimentions of maneuvering box(LxWxH)	mm	450X420X280
Weight of maneuvering box	kg	30

    STANDARD ACCESSORIES: wrenches,drawbar,sleeves, morse taper intermediate sleeve, foundation bolts ,nuts, washers,oil gun, lump ,spring,brush core,end mill arbor,spanner for end mill cutter arbor     OPTIONAL ACCESSORIES(charge separately): deviding head, DRO(for two axis or three axis), machine vise,rotary table,milling chuck,boring cutter holder, facing cutter,vertical mill cutter,etc.   WHY CHOOSE US?   We are the MANUFACTURER of high quality milling machine with competitive price!   Such as vertical milling machine X5040/X5032, universal horizontal milling machine  X6140/X6132,radial milling machine X6330, etc.   The  sales performance, satisfied accessories,longtime work team experience, stability & durability of the machines are our best selling points!

Company Brief   Nantong Lecroy Machine Tool Manufacturing Co,.Ltd specializes in machine tool research and development, design, manufacturer and sales. We have a long history to produce precision machine tool.
Assembly shop of vertical machining center   We follow strict assembly technique after we check each parts are eligible.
Assembly shop     Strict quality management. Professional QC to ensure accuracy.
Warehouse
Casting
The main parts   gear
